142686-1

Active

TE Connectivity AMP Connectors

CONN QC RCPT 12-17AWG 0.197

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC RCPT 12-17AWG 0.197

Technical Specifications

Parameters and characteristics for this part

CONN QC RCPT 12-17AWG 0.197

Part	Contact Material	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Contact Finish	Gender	Tab Thickness	Tab Thickness	Length - Overall [x]	Length - Overall [x]	Insulation	Tab Width	Tab Width	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Terminal Type	Termination
TE Connectivity AMP Connectors 142686-1	Phosphor Bronze	0.126 in	2 mm	0.079 in	3.2 mm	Tin	Female	0.031 "	0.79 mm	0.827 in	21 mm	Non-Insulated	5 mm	0.197 in	Free Hanging (In-Line)	12 AWG	17 AWG	Standard	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

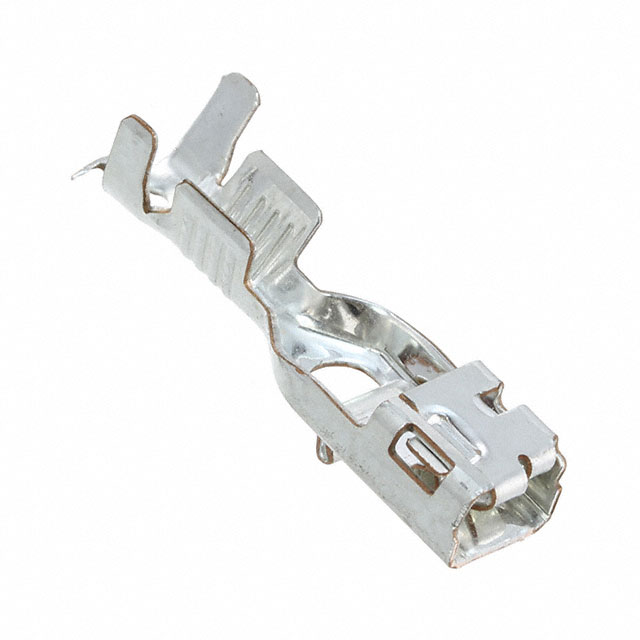

0.197" (5.00mm) Quick Connect Female 12-17 AWG Crimp Connector Non-Insulated
