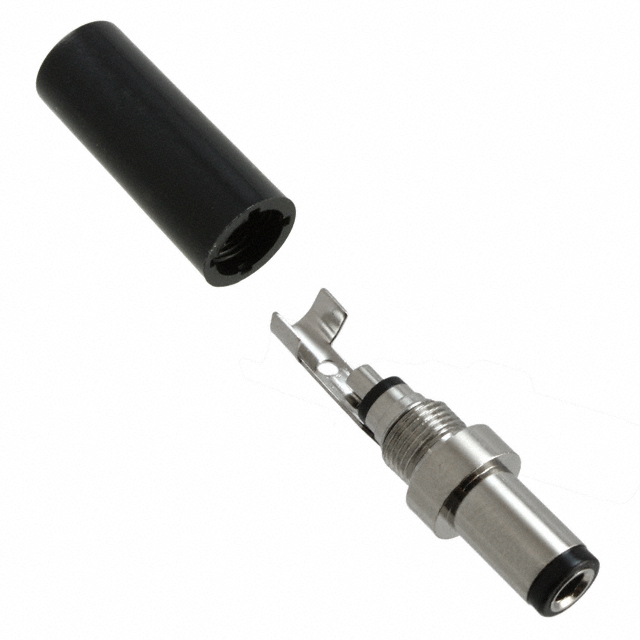

PP3-002B

Active

CUI Devices

CONN PWR PLUG 2.5X5.5MM SOLDER

Search across all available documentation for this part.

Active

CUI Devices

CONN PWR PLUG 2.5X5.5MM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	PP3-002B

Actual Diameter [custom]	2.5 mm
Actual Diameter [custom]	0.098 "
Actual Diameter [custom]	0.217 "
Actual Diameter [custom]	5.5 mm
Body Color	Silver, Black
Body Material	Brass
Connector Type	Plug
Contact Material	Brass
Contact Material - Plating [custom]	Nickel
Current Rating (Amps)	7 A
Gender	Female
Housing Material	Thermoplastic
Includes	1 Connector, 1 Handle
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.5 mm
Industry Recognized Mating Diameter [diameter]	0.098 ", 0.217 "
Insulation Color	Black
Internal Switch(s)	False
Mating Length/Depth	0.374 in
Mating Length/Depth	9.5 mm
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	2
Number of Positions/Contacts [custom]	2
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Shielding	Unshielded
Termination	Solder
Voltage - Rated	24 VDC

Part	Mounting Type	Housing Material	Body Color	Shielding	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Includes	Connector Type	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Gender	Internal Switch(s)	Contact Material	Mating Length/Depth	Mating Length/Depth	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Voltage - Rated	Insulation Color	Termination	Current Rating (Amps)	Body Material	Contact Material - Plating [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Actual Diameter	Actual Diameter
CUI Devices PP3-002B	Free Hanging (In-Line)	Thermoplastic	Black Silver	Unshielded	2.5 mm	0.098 "	0.217 "	5.5 mm	1 Connector 1 Handle	Plug	2.5 mm 5.5 mm	0.098 " 0.217 "	Female		Brass	0.374 in	9.5 mm	2	2	24 VDC	Black	Solder	7 A	Brass	Nickel	40 °C	0 °C
CUI Devices PP3-002A	Free Hanging (In-Line)	Polyoxymethylene (POM)	Black Silver	Unshielded					1 Connector 1 Handle	Plug	2.1 mm 5.5 mm	0.083 in 0.217 "	Female		Brass	0.374 in	9.5 mm	2	2	20 V	Black	Solder	6 A	Brass	Nickel	40 °C	0 °C	0.083 " 0.217 "	2.1 mm 5.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Plug 2.50mm ID (0.098"), 5.50mm OD (0.217") Free Hanging (In-Line)
