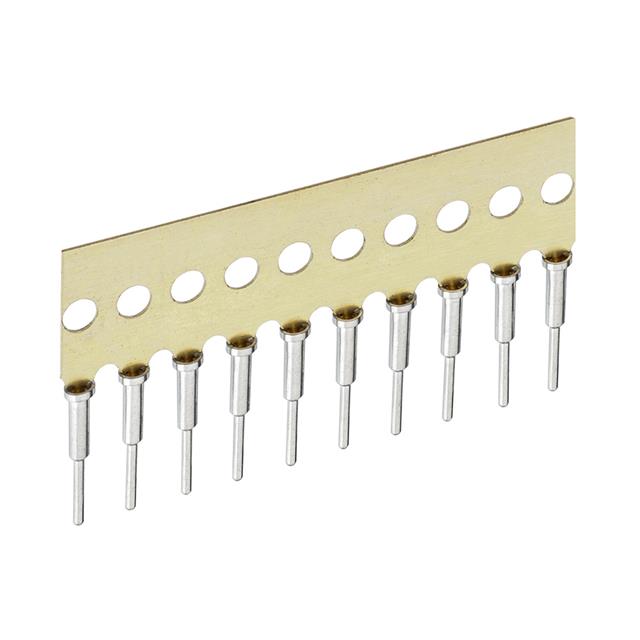

D01-9791001

Active

Harwin Inc.

SUB-MIN SKT/CARRIER ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

SUB-MIN SKT/CARRIER ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	D01-9791001

Contact Finish	Gold
Contact Material	Beryllium Copper
Features	Strip of 10
Flange Diameter [diameter]	1.45 mm
Flange Diameter [diameter]	0.057 in
Insertion Force [Max]	6 N
Insertion Force [Min]	2 N
Length - Overall [x]	0.297 in
Length - Overall [x]	7.54 mm
Mounting Hole Diameter [Max] [diameter]	1.09 mm
Mounting Hole Diameter [Max] [diameter]	0.043 in
Mounting Hole Diameter [Min] [diameter]	0.039 in
Mounting Hole Diameter [Min] [diameter]	0.99 mm
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-55 °C
Socket Depth [z]	3.15 mm
Socket Depth [z]	0.124 "
Tail Type	Standard Tail
Termination	Solder

Part	Insertion Force [Min]	Insertion Force [Max]	Socket Depth [z]	Socket Depth [z]	Length - Overall [x]	Length - Overall [x]	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Tail Type	Features	Contact Finish	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter [Min] [diameter]	Mounting Hole Diameter [Min] [diameter]	Mounting Hole Diameter [Max] [diameter]	Mounting Hole Diameter [Max] [diameter]
Harwin Inc. D01-9791601	2 N	6 N	3.15 mm	0.124 "	0.297 in	7.54 mm	Solder	100 °C	-55 °C	Standard Tail	Strip of 16	Gold	Beryllium Copper	1.45 mm	0.057 in	0.039 in	0.99 mm	1.09 mm	0.043 in
Harwin Inc. D01-9792001	2 N	6 N	3.15 mm	0.124 "	0.297 in	7.54 mm	Solder	100 °C	-55 °C	Standard Tail		Gold	Beryllium Copper	1.45 mm	0.057 in	0.039 in	0.99 mm	1.09 mm	0.043 in
Harwin Inc. D01-9791001	2 N	6 N	3.15 mm	0.124 "	0.297 in	7.54 mm	Solder	100 °C	-55 °C	Standard Tail	Strip of 10	Gold	Beryllium Copper	1.45 mm	0.057 in	0.039 in	0.99 mm	1.09 mm	0.043 in
Harwin Inc. D01-9791201	2 N	6 N	3.15 mm	0.124 "	0.297 in	7.54 mm	Solder	100 °C	-55 °C	Standard Tail	Strip of 12	Gold	Beryllium Copper	1.45 mm	0.057 in	0.039 in	0.99 mm	1.09 mm	0.043 in
Harwin Inc. D01-9790801	2 N	6 N	3.15 mm	0.124 "	0.297 in	7.54 mm	Solder	100 °C	-55 °C	Standard Tail	Strip of 8	Gold	Beryllium Copper	1.45 mm	0.057 in	0.039 in	0.99 mm	1.09 mm	0.043 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.016" ~ 0.020" (0.41mm ~ 0.51mm) Standard Tail Solder
