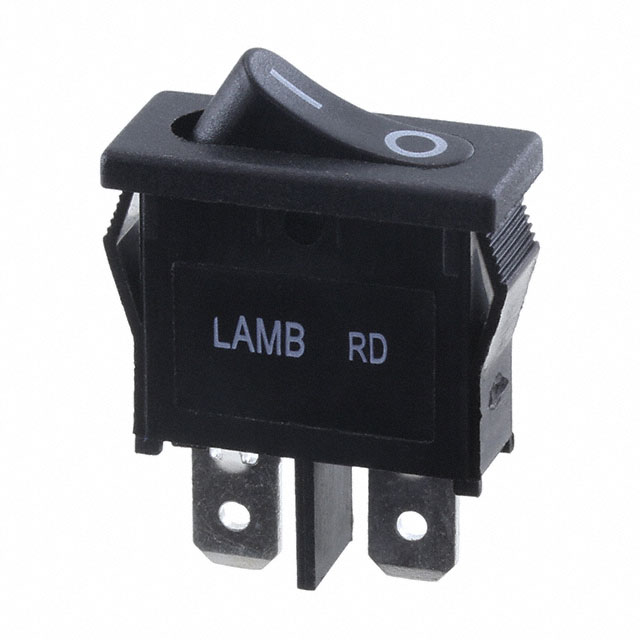

RD11131121
ActiveE-Switch
SWITCH ROCKER SPST 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
RD11131121
ActiveE-Switch
SWITCH ROCKER SPST 10A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RD11131121 |
|---|---|
| Actuator Marking | O - |
| Actuator Type | Concave (Curved) |
| Approval Agency | cULus, UL |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 10 A |
| Electrical Life | 10000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 19.2 mm |
| Panel Cutout Dimensions [y] | 6.8 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.60 | |
| 10 | $ 0.54 | |||
| 25 | $ 0.51 | |||
| 50 | $ 0.49 | |||
| 200 | $ 0.46 | |||
| 400 | $ 0.44 | |||
| 600 | $ 0.40 | |||
Description
General part information
RD11131 Series
Rocker Switch SPST 10A (AC) 125 V Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
