Q-010460001003M

Active

Amphenol Custom Cable

COAX CBL BNC TO SMPM 9.8'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL BNC TO SMPM 9.8'

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

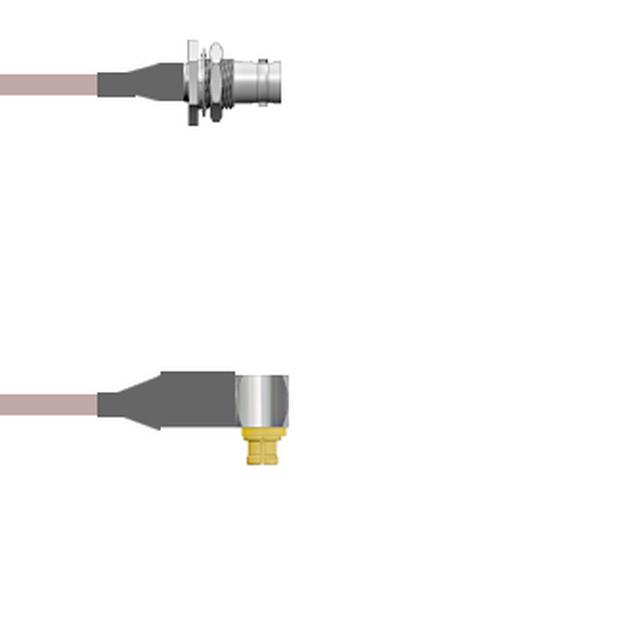

Cable Assembly Coaxial BNC to SMPM RG-178 118.1" (3.0m) 9.8'

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	Q-010460001003M	Q-010460 Series

1st Connector	BNC Jack	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount	Panel Mount
1st Contact Gender	Female	Female
2nd Connector	SMPM Plug, Right Angle	SMPM Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Type	RG-178	RG-178
Color	Copper	Copper
Features	Shielded	Shielded
Frequency - Max [Max]	4 GHz	4 GHz
Length	3 m	2.1 - 750 mm
Length	118.1 in	12 - 118.1 "
Length	9.8 '	7 - 9.8 ft
Length	-	457.2 mm
Length	-	457.2 mm
Overall Impedance	50 Ohms	50 Ohms
Style	BNC to SMPM	BNC to SMPM

COAX CBL BNC TO SMPM 12"

Part	Cable Type	1st Connector Mounting Feature	1st Connector	Overall Impedance	Length	Length	Frequency - Max [Max]	2nd Connector Mounting Type	2nd Connector	Features	1st Contact Gender	Style	2nd Contact Gender	Color	1st Connector Mounting Type	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-010460001012i	RG-178	Bulkhead - Front Side Nut	BNC Jack	50 Ohms	12 "	304.8 mm	4 GHz	Free Hanging (In-Line)	SMPM Plug, Right Angle	Shielded	Female	BNC to SMPM	Male	Copper	Panel Mount
Amphenol Custom Cable Q-010460001084i	RG-178	Bulkhead - Front Side Nut	BNC Jack	50 Ohms	84 in	2.1 m	4 GHz	Free Hanging (In-Line)	SMPM Plug, Right Angle	Shielded	Female	BNC to SMPM	Male	Copper	Panel Mount	7 ft
Amphenol Custom Cable Q-010460001.75M	RG-178	Bulkhead - Front Side Nut	BNC Jack	50 Ohms	29.53 "	750 mm	4 GHz	Free Hanging (In-Line)	SMPM Plug, Right Angle	Shielded	Female	BNC to SMPM	Male	Copper	Panel Mount
Amphenol Custom Cable Q-010460001018i	RG-178	Bulkhead - Front Side Nut	BNC Jack	50 Ohms			4 GHz	Free Hanging (In-Line)	SMPM Plug, Right Angle	Shielded	Female	BNC to SMPM	Male	Copper	Panel Mount		457.2 mm	457.2 mm
Amphenol Custom Cable Q-010460001003M	RG-178	Bulkhead - Front Side Nut	BNC Jack	50 Ohms	118.1 in	3 m	4 GHz	Free Hanging (In-Line)	SMPM Plug, Right Angle	Shielded	Female	BNC to SMPM	Male	Copper	Panel Mount	9.8 '
