N7E50-M516RB-50-WF

Active

3M (TC)

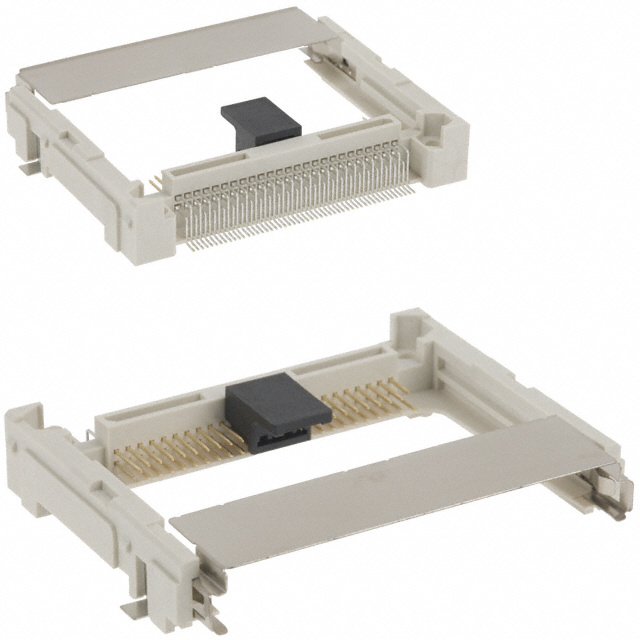

MEMORY CARD CONNECTOR, COMPACTFLASH CARD TYPE I AND TYPE II, 50 CONTACTS, COPPER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Interconnect Catalog +3

N7E50-M516RB-50-WF

Active

3M (TC)

MEMORY CARD CONNECTOR, COMPACTFLASH CARD TYPE I AND TYPE II, 50 CONTACTS, COPPER

Deep-Dive with AI

DocumentsInterconnect Catalog Interconnect Catalog +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	N7E50-M516RB-50-WF

Card Type	CompactFlash® - Type I, II
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Card Guide, Board Guide
Height Above Board	8.3 mm
Height Above Board	0.327 in
Insertion, Removal Method	Pull Out, Push In
Mounting Feature	Normal, Standard - Top
Mounting Type	Surface Mount, Right Angle
Number of Positions	50

N7E50 Series

Part	Height Above Board	Height Above Board	Mounting Type	Features	Insertion, Removal Method	Number of Positions	Card Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Mounting Feature	Height Above Board [z]	Contact Finish Thickness	Connector Type	Ejector Side	Height Above Board [z]
3M (TC) N7E50-M516RB-50-WF	8.3 mm	0.327 in	Surface Mount Right Angle	Board Guide Card Guide	Pull Out Push In	50	CompactFlash® - Type I II	0.76 Ám	30 Áin	Gold	Normal Standard - Top
3M (TC) N7E50-A516VY-30	6.64 mm		Surface Mount Right Angle	Board Guide Card Guide	Pull Out Push In	50	CompactFlash® - Type I			Gold	Reverse - Bottom	0.261 in	Flash
3M (TC) N7E50-N516EB-50-HTA	8.3 mm	0.327 in	Surface Mount Right Angle	Board Guide Card Guide	Push In Push Out	50	CompactFlash® - Type I II	0.76 Ám	30 Áin	Gold	Reverse - Bottom			Connector and Ejector	Right
3M (TC) N7E50-Q516RB-50	8.65 mm	0.341 in	Surface Mount Right Angle	Board Guide Card Guide	Pull Out Push In	50	CompactFlash® - Type I II	0.76 Ám	30 Áin	Gold	Normal Standard - Top
3M (TC) N7E50-E516VY-30			Surface Mount Right Angle	Board Guide Card Guide	Pull Out Push In	50	CompactFlash® - Type I			Gold	Normal Standard - Top	0.157 "	Flash			4 mm
3M (TC) N7E50-7516PK-20-WF	6.64 mm		Surface Mount Right Angle	Board Guide Card Guide	Pull Out Push In	50	CompactFlash® - Type I			Gold	Normal Standard - Top	0.261 in	Flash
3M (TC) N7E50-N516RB-40-WFA			Surface Mount Right Angle	Board Guide Card Guide	Push In Push Out	50	CompactFlash® - Type I II	0.76 Ám	30 Áin	Gold	Reverse - Bottom	0.248 "		Connector and Ejector	Right	6.3 mm
3M (TC) N7E50-7516PG-20	6.64 mm		Surface Mount Right Angle	Board Guide Card Guide	Pull Out Push In	50	CompactFlash® - Type I			Gold	Normal Standard - Top	0.261 in	Flash
3M (TC) N7E50-Q516TC-40	6.66 mm	0.262 in	Surface Mount Right Angle	Board Guide Card Guide	Pull Out Push In	50	CompactFlash® - Type I II	0.76 Ám	30 Áin	Gold	Normal Standard - Top
3M (TC) N7E50-7516PG-20-WF	6.64 mm		Surface Mount Right Angle	Board Guide Card Guide	Pull Out Push In	50	CompactFlash® - Type I			Gold	Normal Standard - Top	0.261 in	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 10.06
		10	$ 9.06
		25	$ 8.53
	Tape & Reel (TR)	90	$ 6.77
		180	$ 6.44
		270	$ 6.26
		450	$ 6.04
		630	$ 5.90
		900	$ 5.75
Newark	Each	1000	$ 6.39

Description

General part information

N7E50 Series

The 7E50 series CF Card Header with copper alloy contacts and a high temperature thermoplastic insulator. It mates with both CompactFlash™ type I and type II cards.
