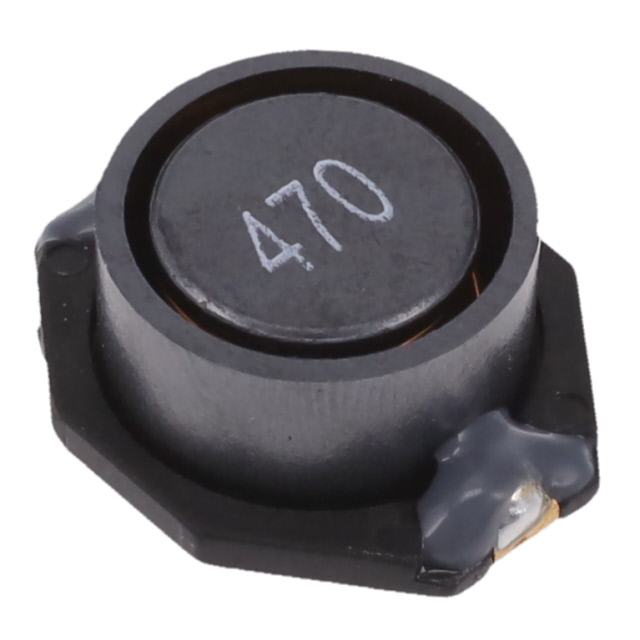

MGDS5-00005-P
ActiveTE Connectivity Passive Product
FIXED IND 47UH 2.4A 97 MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MGDS5-00005-P |
|---|---|
| Current - Saturation (Isat) | 4 A |
| Current Rating (Amps) | 2.4 A |
| DC Resistance (DCR) | 97 mOhm |
| Height - Seated (Max) [Max] | 0.3 in |
| Height - Seated (Max) [Max] | 7.62 mm |
| Inductance | 47 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 0.73 in, 18.54 mm |
| Size / Dimension [y] | 0.6 in, 15.25 mm |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.99 | |
| 10 | $ 2.32 | |||
| 25 | $ 2.10 | |||
| 50 | $ 1.94 | |||
| 100 | $ 1.80 | |||
| Tape & Reel (TR) | 250 | $ 0.98 | ||
Description
General part information
MGDS5 Series
47 µH Shielded Inductor 2.4 A 97mOhm Nonstandard
