TE Connectivity Raychem Cable Protection

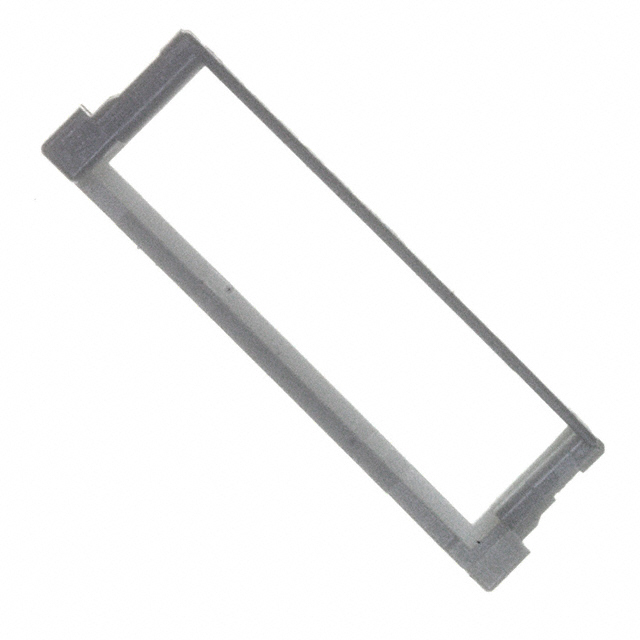

AMP MINI D/R HDR HSG 26P NATU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsManufacturer Catalogue EN Datasheet

2-353294-6

Active

TE Connectivity Raychem Cable Protection

AMP MINI D/R HDR HSG 26P NATU

Deep-Dive with AI

DocumentsManufacturer Catalogue EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2-353294-6

Accessory Type	Shroud
For Use With/Related Products	Mini CT Series
Number of Positions	26

AMP CT Series

Heavy Duty Power Connectors CT CRIMP-2 REC HSG 3P BLACK

Part	Contact Material	Connector Type	Number of Rows	Termination	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Shrouding	Voltage Rating	Contact Finish - Post	Number of Positions Loaded	Mounting Type	Overall Contact Length	Overall Contact Length	Applications	Style	Material Flammability Rating	Insulation Material	Contact Length - Mating	Contact Length - Mating	Fastening Type	Insulation Color	Contact Type	Contact Length - Post	Contact Length - Post [x]	Number of Positions	Insulation Height	Insulation Height	Current Rating (Amps)	Accessory Type	For Use With/Related Products
TE Connectivity Raychem Cable Protection 3-292165-1	Brass	Header	1	Kinked Pin Solder	Circular	0.079 in	2 mm	Shrouded - 4 Wall	125 VAC	Tin	All	Through Hole	9.09 mm	0.358 in	General Purpose	Board to Cable/Wire	UL94 V-0	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Detent Lock	Blue	Male Pin	3.2 mm	0.126 in	11	6.8 mm	0.268 in	Varies by Wire Gauge
TE Connectivity Raychem Cable Protection 2-292165-5	Brass	Header	1	Kinked Pin Solder	Circular	0.079 in	2 mm	Shrouded - 4 Wall	125 VAC	Tin	All	Through Hole	9.09 mm	0.358 in	General Purpose	Board to Cable/Wire	UL94 V-0	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Detent Lock	Blue	Male Pin	3.2 mm	0.126 in		6.8 mm	0.268 in	Varies by Wire Gauge
TE Connectivity Raychem Cable Protection 5-292165-0	Brass	Header	1	Kinked Pin Solder	Circular	0.079 in	2 mm	Shrouded - 4 Wall	125 VAC	Tin	All	Through Hole	9.09 mm	0.358 in	General Purpose	Board to Cable/Wire	UL94 V-0	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Detent Lock	Yellow	Male Pin	3.2 mm	0.126 in	10	6.8 mm	0.268 in	Varies by Wire Gauge
TE Connectivity Raychem Cable Protection 1-292165-4	Brass	Header	1	Kinked Pin Solder	Circular	0.079 in	2 mm	Shrouded - 4 Wall	125 VAC	Tin	All	Through Hole	9.09 mm	0.358 in	General Purpose	Board to Cable/Wire	UL94 V-0	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Detent Lock	Natural	Male Pin	3.2 mm	0.126 in	14	6.8 mm	0.268 in	Varies by Wire Gauge
TE Connectivity Raychem Cable Protection 2-292165-9	Brass	Header	1	Kinked Pin Solder	Circular	0.079 in	2 mm	Shrouded - 4 Wall	125 VAC	Tin	All	Through Hole	9.09 mm	0.358 in	General Purpose	Board to Cable/Wire	UL94 V-0	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Detent Lock	Blue	Male Pin	3.2 mm	0.126 in	9	6.8 mm	0.268 in	Varies by Wire Gauge
TE Connectivity Raychem Cable Protection 292165-7	Brass	Header	1	Kinked Pin Solder	Circular	0.079 in	2 mm	Shrouded - 4 Wall	125 VAC	Tin	All	Through Hole	9.09 mm	0.358 in	General Purpose	Board to Cable/Wire	UL94 V-0	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Detent Lock	Natural	Male Pin	3.2 mm	0.126 in	7	6.8 mm	0.268 in	Varies by Wire Gauge
TE Connectivity Raychem Cable Protection 2-353294-2																										22 positions				Shroud	Mini CT Series
TE Connectivity Raychem Cable Protection 2-353294-6																										26				Shroud	Mini CT Series
TE Connectivity Raychem Cable Protection 292165-9	Brass	Header	1	Kinked Pin Solder	Circular	0.079 in	2 mm	Shrouded - 4 Wall	125 VAC	Tin	All	Through Hole	9.09 mm	0.358 in	General Purpose	Board to Cable/Wire	UL94 V-0	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Detent Lock	Natural	Male Pin	3.2 mm	0.126 in	9	6.8 mm	0.268 in	Varies by Wire Gauge
TE Connectivity Raychem Cable Protection 2-292165-4	Brass	Header	1	Kinked Pin Solder	Circular	0.079 in	2 mm	Shrouded - 4 Wall	125 VAC	Tin	All	Through Hole	9.09 mm	0.358 in	General Purpose	Board to Cable/Wire	UL94 V-0	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Detent Lock	Blue	Male Pin	3.2 mm	0.126 in	4	6.8 mm	0.268 in	Varies by Wire Gauge
