Description

General part information

D38999/26FB Series

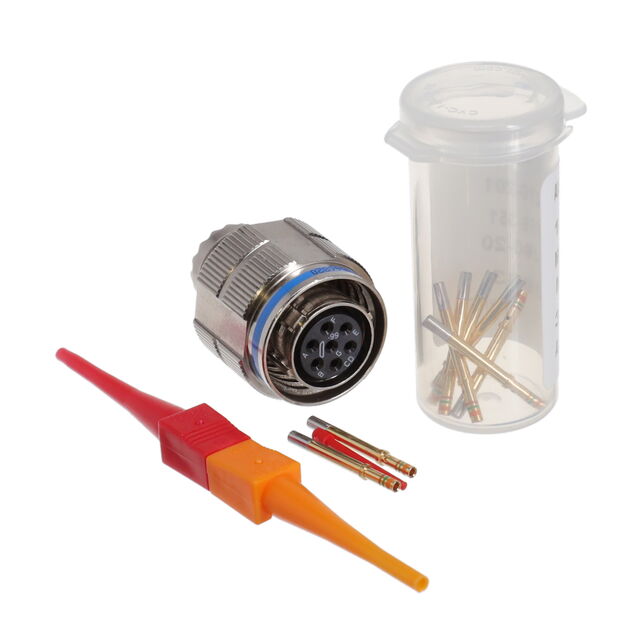

7 Position Circular Connector Plug, Female Sockets Crimp

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26FB99SA

Applications	Military, Aerospace, Marine, Aviation
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating	7.5 A
Fastening Type	Threaded
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-65 °C
Orientation	A
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Aluminum
Shell Size - Insert (Maximum)	99
Shell Size - Insert (Minimum)	11
Shell Size (MIL)	B
Shielding	Shielded
Termination	Crimp

D38999/26FB Series

...

Part	Primary Material	Orientation	Operating Temperature (Max)	Operating Temperature (Min)	Ingress Protection	Shielding	Number of Positions	Shell Size (MIL)	Termination	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Features	Contact Finish - Mating	Fastening Type	Mounting Type	Color	Connector Type	Applications	Contact Finish Thickness - Mating	Grade	Shell Finish	Qualification	Contact Material	Shell Material	Ingress Protection Description	Ingress Protection IP Rating	Contact Type	Type	Contact Size	Housing Color	Contact Shape	Insert Material	Note	Shell Size - Insert Width	Shell Size - Insert Length	Current Rating	Voltage Rating	Material Flammability Rating
Amphenol Aerospace Operations D38999/26FB35P	Metal	N (Normal)	200 °C	-65 °C	Environment Resistant	Shielded	13	B	Crimp	11	35	Coupling Nut	Gold	Threaded	Free Hanging (In-Line)	Silver	Male Pins Plug	Aerospace Aviation Military	50 µin	Military	Electroless Nickel	MIL-DTL-38999 Series III	Copper Alloy	Aluminum
Amphenol Aerospace Operations D38999/26FB98PN-LC		N (Normal)	200 °C	-65 °C		Shielded	6	B		11	98	Coupling Nut		Threaded	Free Hanging (In-Line)		Plug Housing			Military	Nickel	MIL-DTL-38999 Series III		Aluminum	Dust Tight Waterproof	IP67	Crimp	For Male Pins	20	Silver	Circular	Thermoplastic	Contacts Not Included
Amphenol Aerospace Operations D38999/26FB98SN	Composite Metal	N (Normal)	200 °C	-65 °C	Environment Resistant	Shielded	6	B	Crimp	11	98	Coupling Nut	Gold	Threaded	Free Hanging (In-Line)	Silver	Female Sockets Plug Receptacle	Aerospace Aviation Marine Military	50 µin	Military	Electroless Nickel	MIL-DTL-38999 Series III	Copper Alloy	Aluminum Composite
Amphenol Aerospace Operations D38999/26FB5BA	Metal	A	200 °C	-65 °C	Environment Resistant	Shielded	5	B				Coupling Nut		Threaded	Free Hanging (In-Line)		Plug Housing Receptacle Housing			Military	Electroless Nickel	MIL-DTL-38999 Series III		Aluminum Alloy			Crimp	For Female Sockets	20	Silver	Circular	Plastic	Contacts Not Included	5 mm	11 mm
Amphenol Aerospace Operations D38999/26FB98JC	Metal	C	200 °C	-65 °C	Environment Resistant	Shielded	6	B	Crimp	11	98	Coupling Nut	Gold	Threaded	Free Hanging (In-Line)	Silver	Female Sockets Plug	Aerospace Aviation Military	100 µin	Military	Electroless Nickel	MIL-DTL-38999 Series III	Copper Alloy	Aluminum
Amphenol Aerospace Operations D38999/26FB5HA		A				Shielded	5		Crimp				Gold	Threaded	Free Hanging (In-Line)		Male Pins Plug																	5 mm	11 mm
Amphenol Aerospace Operations D38999/26FB99SA	Metal	A	200 °C	-65 °C	Weathertight	Shielded	7	B	Crimp			Coupling Nut Self Locking	Gold	Threaded	Free Hanging (In-Line)	Silver	Female Sockets Plug	Aviation Marine Military	50 µin	Military	Electroless Nickel Nickel	MIL-DTL-38999 Series III	Copper Alloy	Aluminum	Dust Tight Waterproof	IP67						Thermoplastic				7.5 A	500 V	UL94 V-0
