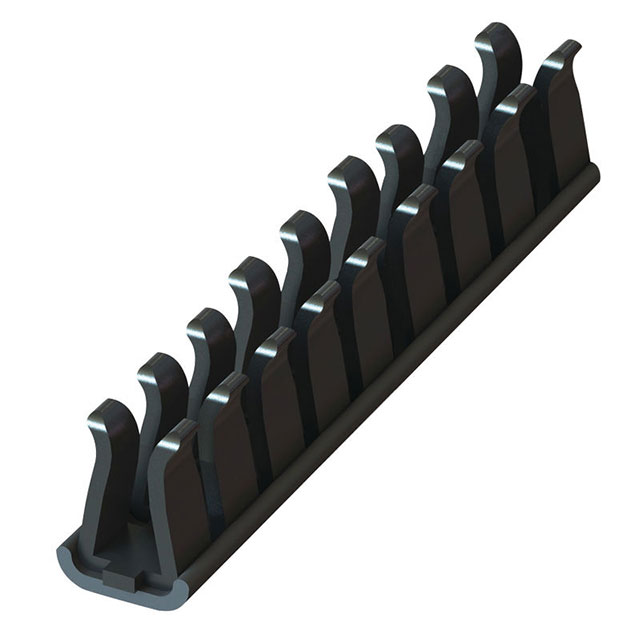

MCCG-2N

Active

Essentra Access Solutions

GROMMET, SLOTTED EDGING, STAINLESS STEEL, 1.4 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

GROMMET, SLOTTED EDGING, STAINLESS STEEL, 1.4 MM

Technical Specifications

Parameters and characteristics for this part

Specification	MCCG-2N

Bushing, Grommet Type	Grommet - Edging, Slotted
Color	Black
Features	Cushion
For Use With/Related Products	Irregular Holes, Edges
Material	Stainless Steel
Material Flammability Rating	UL94 V-0
Panel Cutout Dimensions [x]	30.48 m
Panel Cutout Dimensions [x]	100 ft
Panel Thickness [Max]	1.42 mm
Panel Thickness [Max]	0.056 in
Panel Thickness [Min]	0.044 in
Panel Thickness [Min]	1.12 mm

Part	Bushing, Grommet Type	Features	Color	Material	For Use With/Related Products	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Material Flammability Rating	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]
Essentra Access Solutions MCCG-3N	Grommet - Edging Slotted	Cushion	Black	Stainless Steel	Edges Irregular Holes	30.48 m	100 ft	UL94 V-0	1.75 mm	0.055 in	1.4 mm	0.069 in
Essentra Access Solutions MCCG-1N	Grommet - Edging Slotted	Cushion	Black	Stainless Steel	Edges Irregular Holes	30.48 m	100 ft	UL94 V-0	1.14 mm	0.029 in	0.74 mm	0.045 in
Essentra Access Solutions MCCG-6N	Grommet - Edging Slotted	Cushion	Black	Stainless Steel	Edges Irregular Holes	30.48 m	100 ft	UL94 V-0	3.3 mm	0.113 in	2.87 mm	0.13 in
Essentra Access Solutions MCCG-2N	Grommet - Edging Slotted	Cushion	Black	Stainless Steel	Edges Irregular Holes	30.48 m	100 ft	UL94 V-0		0.044 in	1.12 mm	0.056 in	1.42 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Edging - 100' L (30.48m) Grommet - Edging, Slotted Black
