Q-2T02U0001018I

Active

Amphenol Custom Cable

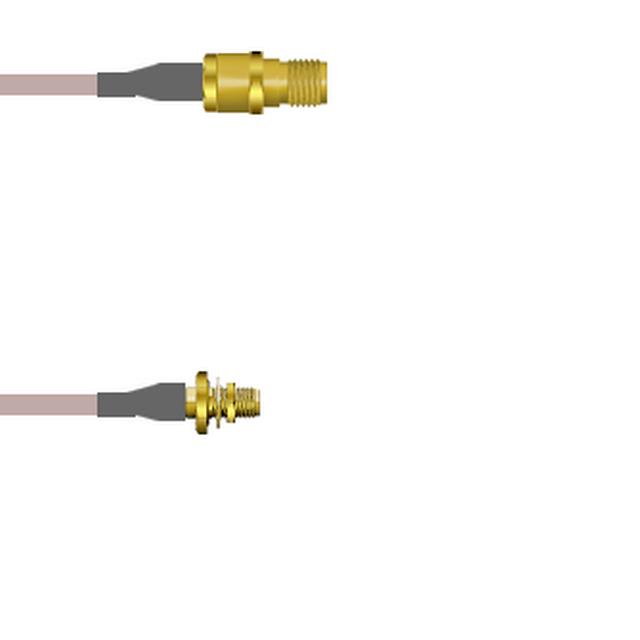

CBL ASSY SMA JACK TO JACK 18"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2T02U0001018I

Active

Amphenol Custom Cable

CBL ASSY SMA JACK TO JACK 18"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2T02U0001018I

1st Connector	SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMA Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-178
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length [x]	457.2 mm
Length [x]	457.2 mm
Overall Impedance	50 Ohms
Style	SMA to SMA

Q-2T02U0 Series

Part	1st Connector	1st Contact Gender	Connector Impedance	Overall Impedance	Features	Cable Impedance	Cable Type	1st Connector Mounting Type	2nd Connector	Style	2nd Connector Mounting Type	Frequency - Max [Max]	Color	2nd Contact Gender	2nd Connector Mounting Feature	Length	Length	Length	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-2T02U00010.5M	SMA Jack	Female	50 Ohms	50 Ohms	Shielded	50 Ohms	RG-178	Free Hanging (In-Line)	SMA Jack	SMA to SMA	Panel Mount	3 GHz	Copper	Female	Bulkhead - Front Side Nut	50 cm	19.69 "
Amphenol Custom Cable Q-2T02U0001024I	SMA Jack	Female	50 Ohms	50 Ohms	Shielded	50 Ohms	RG-178	Free Hanging (In-Line)	SMA Jack	SMA to SMA	Panel Mount	3 GHz	Copper	Female	Bulkhead - Front Side Nut	609.6 mm	24 "
Amphenol Custom Cable Q-2T02U0001108I	SMA Jack	Female	50 Ohms	50 Ohms	Shielded	50 Ohms	RG-178	Free Hanging (In-Line)	SMA Jack	SMA to SMA	Panel Mount	3 GHz	Copper	Female	Bulkhead - Front Side Nut	2.7 m	108 in	9 ft
Amphenol Custom Cable Q-2T02U0001072I	SMA Jack	Female	50 Ohms	50 Ohms	Shielded	50 Ohms	RG-178	Free Hanging (In-Line)	SMA Jack	SMA to SMA	Panel Mount	3 GHz	Copper	Female	Bulkhead - Front Side Nut	1.8 m	72 in	6 ft
Amphenol Custom Cable Q-2T02U0001048I	SMA Jack	Female	50 Ohms	50 Ohms	Shielded	50 Ohms	RG-178	Free Hanging (In-Line)	SMA Jack	SMA to SMA	Panel Mount	3 GHz	Copper	Female	Bulkhead - Front Side Nut	1200 mm	48 in	4 ft
Amphenol Custom Cable Q-2T02U0001001M	SMA Jack	Female	50 Ohms	50 Ohms	Shielded	50 Ohms	RG-178	Free Hanging (In-Line)	SMA Jack	SMA to SMA	Panel Mount	3 GHz	Copper	Female	Bulkhead - Front Side Nut	1 m	39.4 in	3.3 ft
Amphenol Custom Cable Q-2T02U0001.25M	SMA Jack	Female	50 Ohms	50 Ohms	Shielded	50 Ohms	RG-178	Free Hanging (In-Line)	SMA Jack	SMA to SMA	Panel Mount	3 GHz	Copper	Female	Bulkhead - Front Side Nut				9.843 "	250 mm
Amphenol Custom Cable Q-2T02U0001018I	SMA Jack	Female	50 Ohms	50 Ohms	Shielded	50 Ohms	RG-178	Free Hanging (In-Line)	SMA Jack	SMA to SMA	Panel Mount	3 GHz	Copper	Female	Bulkhead - Front Side Nut					457.2 mm	457.2 mm
Amphenol Custom Cable Q-2T02U0001002M	SMA Jack	Female	50 Ohms	50 Ohms	Shielded	50 Ohms	RG-178	Free Hanging (In-Line)	SMA Jack	SMA to SMA	Panel Mount	3 GHz	Copper	Female	Bulkhead - Front Side Nut	2 m	78.7 in	6.6 ft
Amphenol Custom Cable Q-2T02U0001003I	SMA Jack	Female	50 Ohms	50 Ohms	Shielded	50 Ohms	RG-178	Free Hanging (In-Line)	SMA Jack	SMA to SMA	Panel Mount	3 GHz	Copper	Female	Bulkhead - Front Side Nut	76.2 mm	3 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 87.29
		25	$ 85.58
		50	$ 83.87
		100	$ 82.16
		250	$ 80.45

Description

General part information

Q-2T02U0 Series

Cable Assembly Coaxial SMA to SMA RG-178 18.00" (457.20mm)

Documents

Technical documentation and resources

No documents available
