H3BWH-1018M

Active

Assmann WSW Components

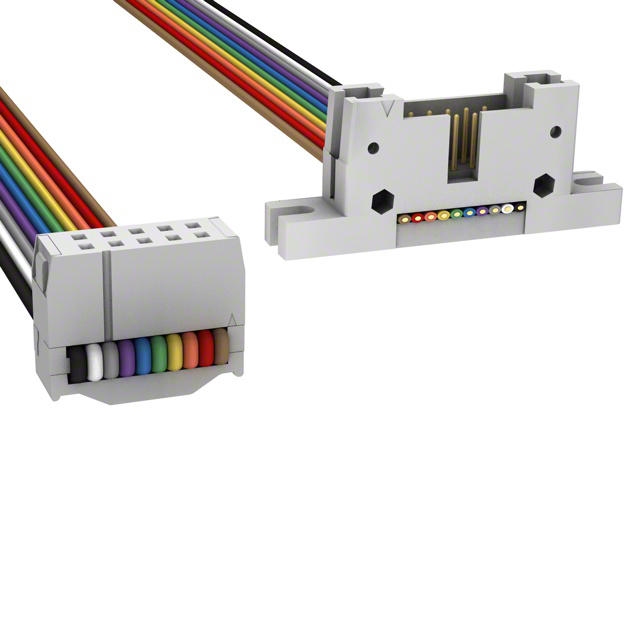

IDC CBL - HHSR10H/AE10M/HHPL10H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHSR10H/AE10M/HHPL10H

Technical Specifications

Parameters and characteristics for this part

Specification	H3BWH-1018M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Strain Relief (Socket), Polarizing Key (Plug), Flange
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	10
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Length	Length	Length	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Pitch - Cable	Pitch - Cable	Number of Positions	Features	Shielding	Contact Finish	Color	Cable Termination	Connector Type	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]
Assmann WSW Components H3BWH-1006M	152.4 mm	6 "	0.5 '	15 µin	0.38 µm	2	0.05 "	1.27 mm	10	Flange Polarizing Key (Plug) Strain Relief (Socket)	Unshielded	Gold	Multiple Ribbon	IDC	Socket to Plug	0.1 in	2.54 mm
Assmann WSW Components H3BWH-1018M				15 µin	0.38 µm	2	0.05 "	1.27 mm	10	Flange Polarizing Key (Plug) Strain Relief (Socket)	Unshielded	Gold	Multiple Ribbon	IDC	Socket to Plug	0.1 in	2.54 mm	457.2 mm	1.5 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Cable Assembly Rectangular Socket to Plug 1.50' (457.20mm)
