100570-2
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 13-17AWG 0.250
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
100570-2
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 13-17AWG 0.250
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 100570-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter | 4.29 mm, 3 mm |
| Insulation Diameter [Max] | 0.169 in |
| Insulation Diameter [Min] | 0.118 in |
| Length - Overall [x] | 0.752 " |
| Length - Overall [x] | 19.1 mm |
| Mounting Type | Free Hanging (In-Line) |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 17 AWG |
| Wire Gauge [Min] | 13 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.26 | |
| 10 | $ 0.22 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.19 | |||
| 100 | $ 0.18 | |||
| 250 | $ 0.17 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.15 | |||
| 2500 | $ 0.14 | |||
| Tape & Reel (TR) | 6000 | $ 0.08 | ||
| 12000 | $ 0.08 | |||
100570 Series
CONN QC RCPT 13-17AWG 0.250
| Part | Tab Width | Tab Width | Tab Thickness | Tab Thickness | Terminal Type | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type | Termination | Length - Overall [x] | Length - Overall [x] | Contact Finish | Gender | Insulation | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 100570-2 | 6.35 mm | 0.25 in | 0.032 in | 0.81 mm | Standard | 0.169 in | 0.118 in | 3 mm, 4.29 mm | 13 AWG | 17 AWG | Free Hanging (In-Line) | Crimp | 0.752 " | 19.1 mm | Tin | Female | Non-Insulated | Brass |
Description
General part information
100570 Series

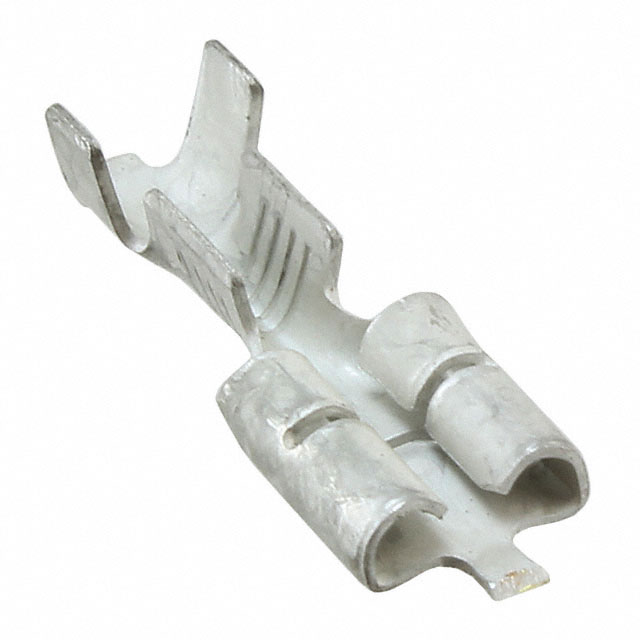

0.250" (6.35mm) Quick Connect Female 13-17 AWG Crimp Connector Non-Insulated
