Q-2P02C0005002M
ActiveAmphenol Custom Cable
CBL ASSY SMA-NTYPE JACK-PLG 6.6'
Deep-Dive with AI
Search across all available documentation for this part.
Q-2P02C0005002M
ActiveAmphenol Custom Cable
CBL ASSY SMA-NTYPE JACK-PLG 6.6'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2P02C0005002M |
|---|---|
| 1st Connector | SMA Jack, Right Angle |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-316 |
| Color | Copper |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 3 GHz |
| Length | 6.6 ft |
| Length | 78.7 in |
| Length | 2 m |
| Overall Impedance | 50 Ohms |
| Style | SMA to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 114.32 | |
| 25 | $ 106.51 | |||
| 50 | $ 98.69 | |||
| 100 | $ 91.99 | |||
| 250 | $ 86.41 | |||
Description
General part information
Q-2P02C0 Series

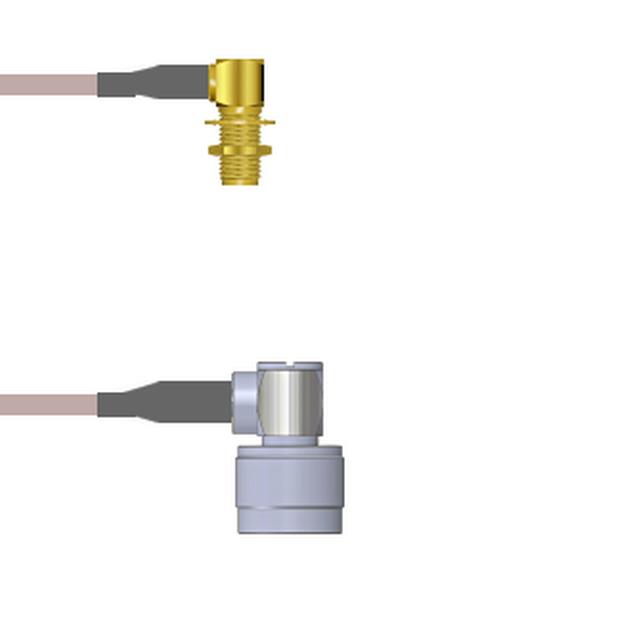

Cable Assembly Coaxial SMA to N-Type RG-316 78.7" (2.0m) 6.6'
Documents
Technical documentation and resources
No documents available
