132294-11

Active

Amphenol RF

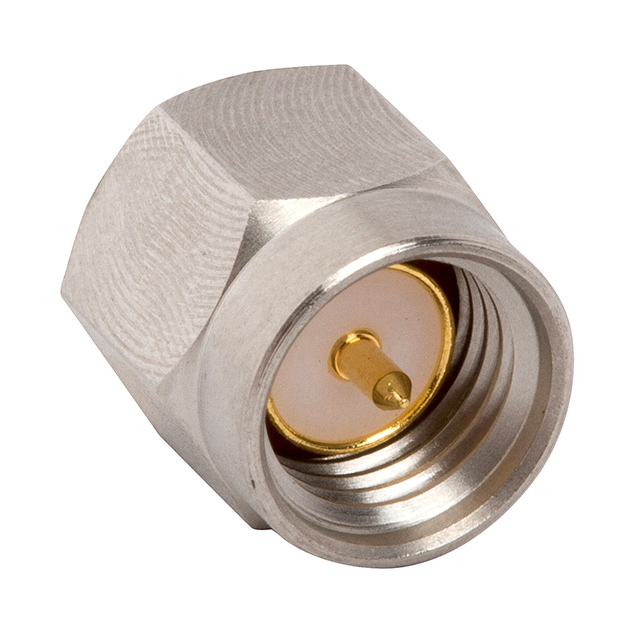

SMA STRAIGHT SOLDER PLUG RG-405 0.086-INCH CONFORMABLE 50 OHM

Search across all available documentation for this part.

Active

Amphenol RF

SMA STRAIGHT SOLDER PLUG RG-405 0.086-INCH CONFORMABLE 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	132294-11

Body Finish	Gold; Passivated
Body Material	Brass, Stainless Steel
Cable Group	Semi Rigid, RG-405
Cable Group [Max]	0.086 in
Cable Group [Min]	0.085 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold, Silver
Impedance	50 Ohms
Includes	1 Connector, 1 Insulator
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Frequency - Max [Max]	Mating Cycles	Includes	Mounting Type	Impedance	Connector Type	Shield Termination	Body Material	Cable Group	Cable Group [Min]	Cable Group [Max]	Center Contact Plating	Center Contact Material	Body Finish	Dielectric Material	Connector Style	Housing Color	Voltage Rating
Amphenol RF 132294-11	Solder	-65 ░C	165 °C	1	18 GHz	500	1 Connector 1 Insulator	Free Hanging (In-Line)	50 Ohms	Male Pin Plug	Solder	Brass Stainless Steel	RG-405 Semi Rigid	0.085 in	0.086 in	Gold	Beryllium Copper	Gold; Passivated	Polytetrafluoroethylene (PTFE)	SMA	Gold Silver	500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
