796980-2

Active

TE Connectivity AMP Connectors

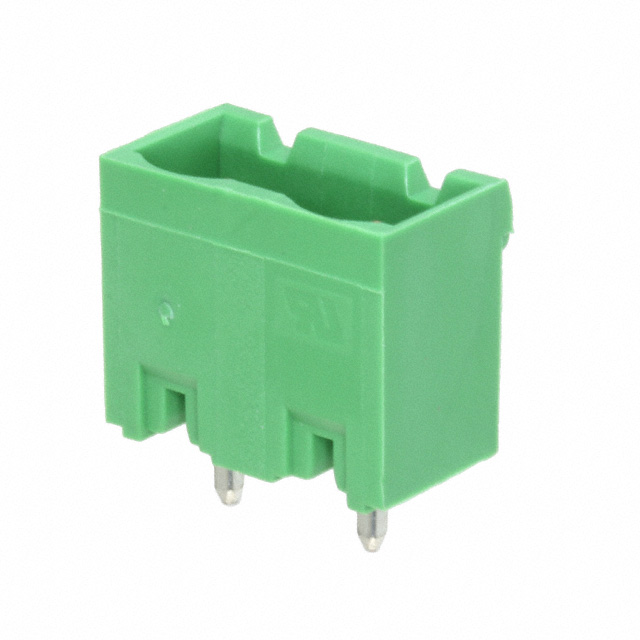

TERM BLOCK HDR 2POS VERT 7.62MM

Deep-Dive with AI

Search across all available documentation for this part.

796980-2

Active

TE Connectivity AMP Connectors

TERM BLOCK HDR 2POS VERT 7.62MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.49
		10	$ 0.47
		25	$ 0.47
		50	$ 0.45
		200	$ 0.38
		400	$ 0.36
		600	$ 0.35

Description

General part information

796980 Series

2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.300" (7.62mm) Vertical Through Hole

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	796980-2	796980 Series

Color	Green	Green
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Contact Tail Length	3.5 mm	3.5 mm
Contact Tail Length	0.138 in	0.138 in
Header Orientation	Vertical	Vertical
Insulation Height	0.472 in	0.472 in
Insulation Height	12 mm	12 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Number of Positions	2	2 - 10
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.3 in	0.3 in
Pitch [x]	7.62 mm	7.62 mm
Positions Per Level	2	2 - 10
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V	300 V

796980 Series

TERM BLOCK HDR 8POS VERT 7.62MM

Part	Insulation Height	Insulation Height	Contact Mating Finish	Contact Tail Length	Contact Tail Length	Pitch [x]	Pitch [x]	Material Flammability Rating	Number of Levels	Positions Per Level	Number of Positions	Contact Material	Voltage - UL	Type	Header Orientation	Termination Style	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Color
TE Connectivity AMP Connectors 796980-8	0.472 in	12 mm	Tin	3.5 mm	0.138 in	0.3 in	7.62 mm	UL94 V-0	1	8	8	Copper Alloy	300 V	Header, Male Pins, Shrouded (4 Side)	Vertical	Solder	Through Hole	-40 °C	110 °C	Green
TE Connectivity AMP Connectors 1-796980-0	0.472 in	12 mm	Tin	3.5 mm	0.138 in	0.3 in	7.62 mm	UL94 V-0	1	10	10	Copper Alloy	300 V	Header, Male Pins, Shrouded (4 Side)	Vertical	Solder	Through Hole	-40 °C	110 °C	Green
TE Connectivity AMP Connectors 796980-6	0.472 in	12 mm	Tin	3.5 mm	0.138 in	0.3 in	7.62 mm	UL94 V-0	1	6	6	Copper Alloy	300 V	Header, Male Pins, Shrouded (4 Side)	Vertical	Solder	Through Hole	-40 °C	110 °C	Green
TE Connectivity AMP Connectors 796980-5	0.472 in	12 mm	Tin	3.5 mm	0.138 in	0.3 in	7.62 mm	UL94 V-0	1	5		Copper Alloy	300 V	Header, Male Pins, Shrouded (4 Side)	Vertical	Solder	Through Hole	-40 °C	110 °C	Green
TE Connectivity AMP Connectors 796980-9	0.472 in	12 mm	Tin	3.5 mm	0.138 in	0.3 in	7.62 mm	UL94 V-0	1	9	9	Copper Alloy	300 V	Header, Male Pins, Shrouded (4 Side)	Vertical	Solder	Through Hole	-40 °C	110 °C	Green
TE Connectivity AMP Connectors 796980-2	0.472 in	12 mm	Tin	3.5 mm	0.138 in	0.3 in	7.62 mm	UL94 V-0	1	2	2	Copper Alloy	300 V	Header, Male Pins, Shrouded (4 Side)	Vertical	Solder	Through Hole	-40 °C	110 °C	Green
TE Connectivity AMP Connectors 796980-3	0.472 in	12 mm	Tin	3.5 mm	0.138 in	0.3 in	7.62 mm	UL94 V-0	1	3		Copper Alloy	300 V	Header, Male Pins, Shrouded (4 Side)	Vertical	Solder	Through Hole	-40 °C	110 °C	Green
