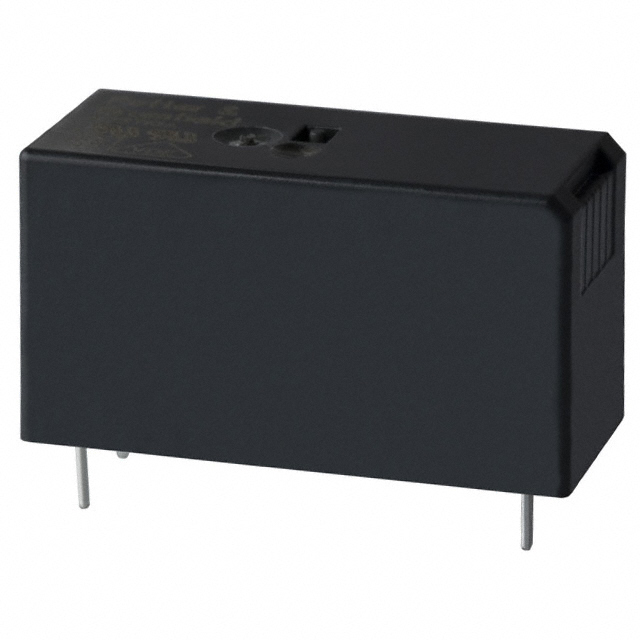

RTB34024F

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 12A 24V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 12A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Relay Type	Load - Max Switching	Mounting Type	Approval Agency	Seal Rating	Coil Voltage	Contact Form	Coil Current	Operate Time	Contact Material	Switching Voltage [Max]	Coil Resistance	Termination Style	Release Time	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Must Operate Voltage	Must Release Voltage	Coil Insulation	Contact Rating (Current)
TE Connectivity Potter & Brumfield Relays RTB34012F	General Purpose	4800 VA	Through Hole	CQC CSA cURus VDE	Sealed - Fully	12 VDC	SPST-NO (1 Form A)	33.3 mA	8 ms	Silver Nickel (AgNi)	400 VAC	360 Ohms	PC Pin	6 ms	85 °C	-40 °C	Non Latching	8.4 VDC	1.2 VDC	Class F	12 A
TE Connectivity Potter & Brumfield Relays RTB34005F	General Purpose	4800 VA	Through Hole	CQC CSA cURus VDE	Sealed - Fully	5 VDC	SPST-NO (1 Form A)	14.2 mA	8 ms	Silver Nickel (AgNi)	400 VAC	62 Ohms	PC Pin	6 ms	85 °C	-40 °C	Non Latching	3.5 VDC	0.5 VDC	Class F	12 A
TE Connectivity Potter & Brumfield Relays RTB34005	General Purpose	4800 VA	Through Hole	CQC CSA cURus VDE	Sealed - Fully	5 VDC	SPST-NO (1 Form A)	14.2 mA	8 ms	Silver Nickel (AgNi)	400 VAC	62 Ohms	PC Pin	6 ms	85 °C	-40 °C	Non Latching	3.5 VDC	0.5 VDC	Class F	12 A
TE Connectivity Potter & Brumfield Relays RTB34024F	General Purpose	4800 VA	Through Hole	CQC CSA cURus VDE	Sealed - Fully	24 VDC	SPST-NO (1 Form A)	16.7 mA	8 ms	Silver Nickel (AgNi)	400 VAC	1440 Ohms	PC Pin	6 ms	85 °C	-40 °C	Non Latching	16.8 VDC	2.4 VDC	Class F	12 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
