Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AEKD-AFLPANEL1 | AEKD-AFLPANEL1 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Function | Motor Controller/Driver | Motor Controller/Driver |
| Primary Attributes | Motors (Stepper) | Motors (Stepper) |
| Supplied Contents | Board(s) | Board(s) |
| Type | Power Management | Power Management |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 396.00 | |
AEKD-AFLPANEL1 Series
Adaptive Front Light testing and prototyping kit arranged on plexiglass panel
| Part | Contents | Primary Attributes | Function | Type | Supplied Contents |
|---|---|---|---|---|---|
STMicroelectronics AEKD-AFLPANEL1 | |||||
STMicroelectronics AEKD-AFLPANEL1 | Board(s) | Motors (Stepper) | Motor Controller/Driver | Power Management | Board(s) |
Description
General part information
AEKD-AFLPANEL1 Series

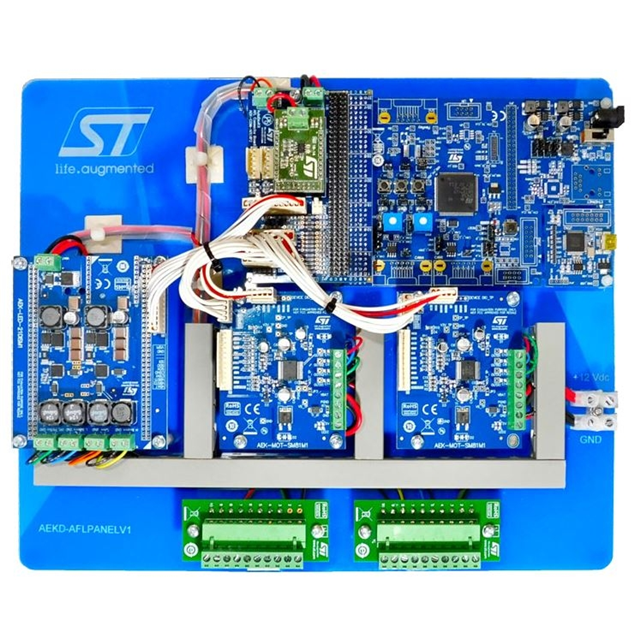

The AEKD-AFLPANEL1 is a panel assembly of the driving hardware for an adaptive front light testing system featuring ST AutoDevKit boards on a specially designed perspex board that facilitates development and prototyping activities.
The panel provides a tidy arrangement of two stepper motor control boards, a four-channel LED driver board, a control board with SPC5 Chorus microcontroller for automotive applications, a connector board with a FAN switch board and further connector board for wiring configuration.
Used in conjunction with the AEKD-AFLLIGHT1 demo automotive headlight assembly with LED lights, stepper motors and fan, these two kits provide a complete adaptive front lighting tool for application and solution development purposes.
