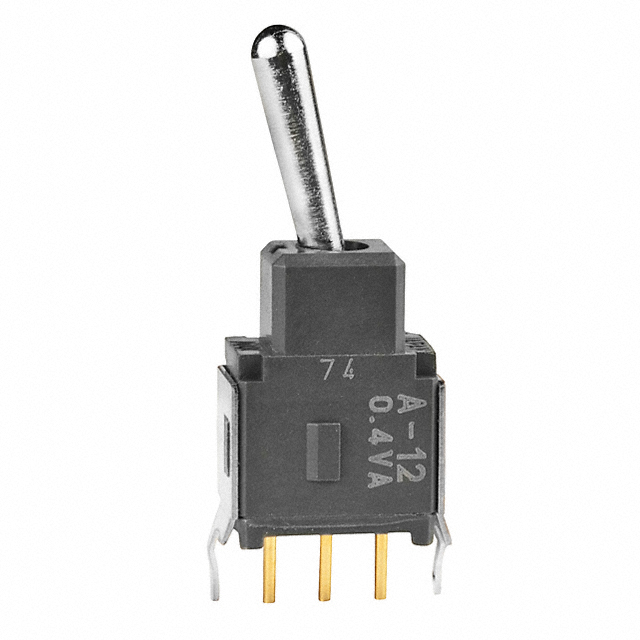

A12AB1

Active

NKK SWITCHES

PROCESS SEALED SUBMINIATURE TOGGLE

Search across all available documentation for this part.

Active

NKK SWITCHES

PROCESS SEALED SUBMINIATURE TOGGLE

Technical Specifications

Parameters and characteristics for this part

Specification	A12AB1

Actuator Length [x]	10 mm
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Actuator Type	Standard Round
Bushing Thread	Unthreaded, Square
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Process Sealed
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

PROCESS SEALED SUBMINIATURE TOGGLE

Part	Features	Actuator Length [x]	Voltage Rating - AC	Current Rating (Amps)	Bushing Thread	Electrical Life	Illumination	Termination Style	Switch Function	Actuator Type	Actuator Material	Voltage Rating - DC	Mounting Type	Circuit	Operating Temperature [Min]	Operating Temperature [Max]
NKK SWITCHES A12AB1	Process Sealed	10 mm	28 V	0.4 VA	Unthreaded, Square	50000 Cycles	Non-Illuminated	PC Pin	On-On	Standard Round	Glass Filled, Nylon, Polyamide (PA)	28 V	Through Hole	SPDT	-30 ░C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Through Hole
