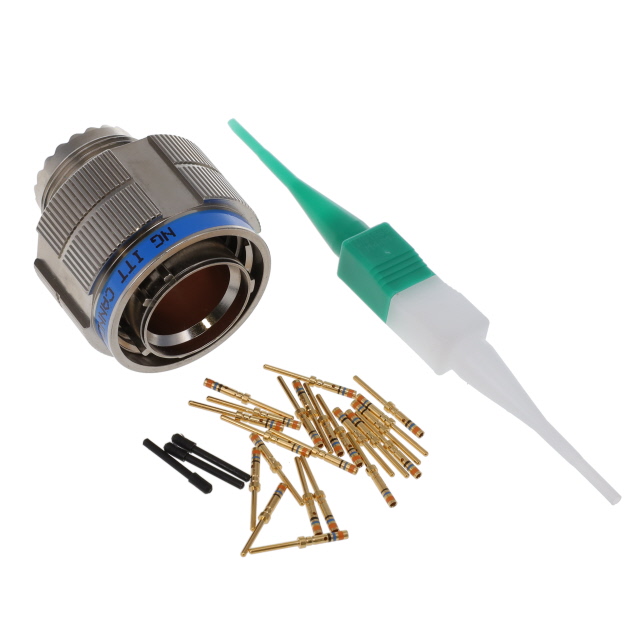

KJA6T13F35PN

Active

ITT Cannon, LLC

CONN PLUG MALE 22POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

KJA6T13F35PN

Active

ITT Cannon, LLC

CONN PLUG MALE 22POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KJA6T13F35PN

Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	22 positions
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	13
Shielding	Shielded
Termination	Crimp

KJA6T Series

Part	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shielding	Primary Material	Connector Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Ingress Protection	Shell Finish	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Mounting Type	Contact Finish - Mating	Color	Housing Color	Features	Shell Size - Insert	Type	Contact Shape	Insert Material	Contact Type	Note	Contact Size	Contact Size	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]
ITT Cannon, LLC KJA6T13F35PN	35	13	Shielded	Metal	Male Pins Plug	22 positions	-65 ░C	200 °C	N	Environment Resistant	Electroless Nickel	Aluminum Alloy	1.27 µm	50 µin	Crimp	Free Hanging (In-Line)	Gold
ITT Cannon, LLC KJA6T9W35SN	35	9	Shielded	Metal	Female Sockets Plug	6	-65 ░C	347 °F	N	Environment Resistant	Olive Drab Cadmium	Aluminum Alloy	1.27 µm	50 µin	Crimp	Free Hanging (In-Line)	Gold	Olive Drab
ITT Cannon, LLC KJA6T17F6SNL50			Shielded		Plug Housing	6	-65 ░C	200 °C	N	Environment Resistant	Electroless Nickel	Aluminum Alloy				Free Hanging (In-Line)			Silver	Coupling Nut	17-6	For Female Sockets	Circular	Plastic	Crimp	Contacts Not Included	12
ITT Cannon, LLC KJA6T25W8SNL			Shielded		Plug Housing	8	-65 ░C	347 °F	N	Environment Resistant	Cadmium over Electroless Nickel	Aluminum Alloy				Free Hanging (In-Line)			Olive Drab	Coupling Nut	25-8	For Female Sockets	Circular	Plastic	Crimp	Contacts Not Included		8 Coax Twinax
ITT Cannon, LLC KJA6T21W75PEL			Shielded		Plug Housing	4	-65 ░C	347 °F	E	Environment Resistant	Cadmium over Electroless Nickel	Aluminum Alloy				Free Hanging (In-Line)			Olive Drab	Coupling Nut		For Male Pins	Circular	Plastic	Crimp	Contacts Not Included		8 Twinax	75	21
ITT Cannon, LLC KJA6T17F35SN	35	17	Shielded	Metal	Female Sockets Plug	55 positions	-65 ░C	200 °C	N	Environment Resistant	Electroless Nickel	Aluminum Alloy	1.27 µm	50 µin	Crimp	Free Hanging (In-Line)	Gold
ITT Cannon, LLC KJA6T21F35PNL50	35	21	Shielded		Plug Housing	79	-65 ░C	200 °C	N	Environment Resistant	Electroless Nickel	Aluminum Alloy				Free Hanging (In-Line)			Silver	Coupling Nut		For Male Pins	Circular	Plastic	Crimp	Contacts Not Included		22D
ITT Cannon, LLC KJA6T17F6PNL27			Shielded		Plug Housing	6	-65 ░C	200 °C	N	Environment Resistant	Electroless Nickel	Aluminum Alloy				Free Hanging (In-Line)			Silver	Coupling Nut	17-6	For Male Pins	Circular	Plastic	Crimp	Contacts Not Included	12
ITT Cannon, LLC KJA6T25F35PN			Shielded	Metal	Male Pins Plug	128	-65 ░C	200 °C	N	Environment Resistant	Electroless Nickel	Aluminum Alloy	1.27 µm	50 µin	Crimp	Free Hanging (In-Line)	Gold
ITT Cannon, LLC KJA6T19W35SN	35	19	Shielded	Metal	Female Sockets Plug	66	-65 ░C	347 °F	N	Environment Resistant	Olive Drab Cadmium	Aluminum Alloy	1.27 µm	50 µin	Crimp	Free Hanging (In-Line)	Gold	Olive Drab

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 264.26

Description

General part information

KJA6T Series

22 Position Circular Connector Plug, Male Pins Crimp
