T1230240125-000 - T1230240125-000

T1230240125-000

Active
TE Connectivity AMP Connectors

H24B-TSH-M25

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsH24B-TSH-M/PGDatasheet+2
T1230240125-000 - T1230240125-000

T1230240125-000

Active
TE Connectivity AMP Connectors

H24B-TSH-M25

Deep-Dive with AI

DocumentsH24B-TSH-M/PGDatasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationT1230240125-000
Connector TypeHood
Housing ColorGray
Housing FinishPowder Coated
Housing MaterialAluminum Alloy, Die Cast
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Lock LocationLocking Clip (2) on Base Bottom
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
SizeH24B
Size / Dimension [x]120 mm
Size / Dimension [x]4.724 "
Size / Dimension [y]43 mm
Size / Dimension [y]1.693 in
Size / Dimension [z]76 mm
Size / Dimension [z]2.992 in
StyleSide Entry
Thread SizeM25

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 15.24
10$ 12.95
25$ 12.14
50$ 11.56
100$ 11.01
250$ 10.32
500$ 9.83
1000$ 9.36

T1230 Series

H24B-TSH-M25

PartSizeHousing ColorHousing MaterialLock LocationSize / Dimension [x]Size / Dimension [x]Size / Dimension [y]Size / Dimension [z]Size / Dimension [y]Size / Dimension [z]Housing FinishOperating Temperature [Max]Operating Temperature [Min]Thread SizeStyleIngress ProtectionConnector Type
TE Connectivity AMP Connectors
T1230240125-000
H24B
Gray
Aluminum Alloy, Die Cast
Locking Clip (2) on Base Bottom
120 mm
4.724 "
43 mm
76 mm
1.693 in
2.992 in
Powder Coated
125 °C
-40 °C
M25
Side Entry
IP65 - Dust Tight, Water Resistant
Hood

Description

General part information

T1230 Series

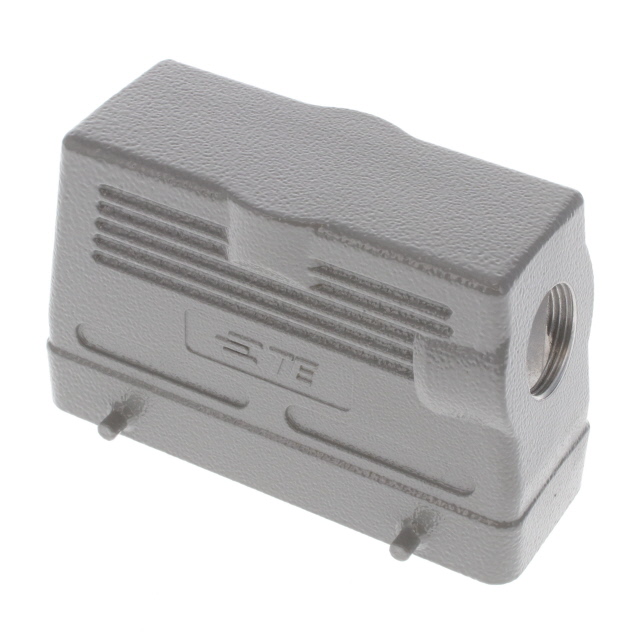

Hood Connector Side Entry M25 H24B IP65 - Dust Tight, Water Resistant
