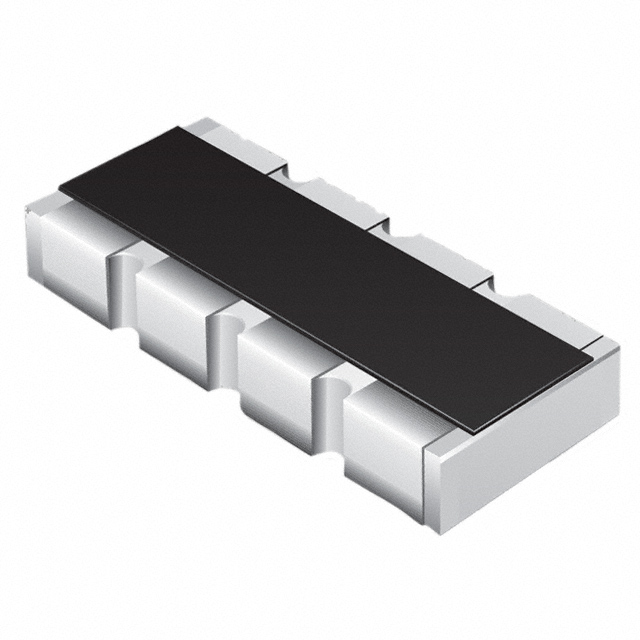

CG0805MLA-18KE
ObsoleteBourns Inc.
VARISTOR 28V 5A 0805
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CG0805MLA-18KE |
|---|---|
| Capacitance @ Frequency | 15 pF |
| Current - Surge | 5 A |
| Energy | 0.01 J |
| Maximum AC Volts [Max] | 14 V |
| Maximum DC Volts [Max] | 18 V |
| Mounting Type | Surface Mount, MLCV |
| Number of Circuits | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0805 |
| Varistor Voltage (Max) [Max] | 30.8 V |
| Varistor Voltage (Typ) | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CG0805 Series
28 V 5 A Varistor 4 Circuit Surface Mount, MLCV 0805 (2012 Metric)
