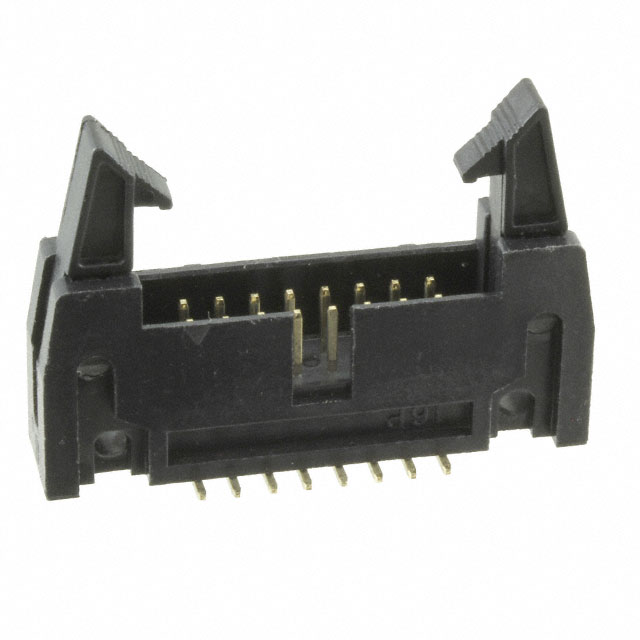

3010-16-003-13-00
ActiveCnC Tech, LLC
2 2.54MM -40℃~+105℃ BRASS VERTICAL WELDING SMD WIRE TO BOARD CONNECTOR ROHS
Deep-Dive with AI
Search across all available documentation for this part.
3010-16-003-13-00
ActiveCnC Tech, LLC
2 2.54MM -40℃~+105℃ BRASS VERTICAL WELDING SMD WIRE TO BOARD CONNECTOR ROHS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3010-16-003-13-00 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Latch Lock/Eject Hooks, Long |
| Features | Keying Slot |
| Insulation Height [z] | 17 mm |
| Insulation Height [z] | 0.669 " |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VAC |
3010-16 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Number of Positions Loaded | Features | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Material Flammability Rating | Fastening Type | Style | Insulation Height | Insulation Height | Contact Material | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Length - Post [x] | Contact Length - Post [x] | Pitch - Mating | Pitch - Mating | Number of Positions | Connector Type | Shrouding | Number of Rows | Mounting Type | Termination | Insulation Material | Contact Finish - Mating | Contact Finish Thickness - Mating | Voltage Rating | Current Rating (Amps) | Insulation Height [z] | Insulation Height [z] | Contact Finish | Contact Finish Thickness | Pitch [x] | Pitch [x] | Cable Termination | Row Spacing [x] | Row Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CnC Tech, LLC | -40 °C | 105 ░C | Square | All | Keying Slot | 2.03 µm | 80 µin | Male Pin | UL94 V-0 | Push-Pull | Board to Cable/Wire | 8.2 mm | 0.323 in | Brass | 2.54 mm | 0.1 in | 0.134 in | 3.4 mm | 0.1 in | 2.54 mm | 16 | Header | Shrouded - 4 Wall | 2 | Through Hole Right Angle | Solder | Polybutylene Terephthalate (PBT) | |||||||||||||
CnC Tech, LLC | -40 °C | 105 ░C | Square | All | Keying Slot | Male Pin | UL94 V-0 | Latch Lock/Eject Hooks Short | Board to Cable/Wire | 8.3 mm | 0.327 " | Brass | 2.54 mm | 0.1 in | 0.134 in | 3.4 mm | 0.1 in | 2.54 mm | 16 | Header | Shrouded - 4 Wall | 2 | Through Hole Right Angle | Solder | Polybutylene Terephthalate (PBT) | Gold | Flash | 250 VAC | 3 A | |||||||||||
CnC Tech, LLC | -40 °C | 105 ░C | Square | All | Keying Slot | Male Pin | UL94 V-0 | Latch Lock/Eject Hooks Long | Board to Cable/Wire | Brass | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | 16 | Header | Shrouded - 4 Wall | 2 | Surface Mount | Solder | Nylon 9T Polyamide (PA9T) | Gold | Flash | 250 VAC | 3 A | 17 mm | 0.669 " | |||||||||||||
CnC Tech, LLC | Polarizing Key | Male Pin | Push-Pull | 16 | Header | 2 | Free Hanging (In-Line) | Gold | Flash | 2.54 mm | 0.1 in | IDC | 0.1 in | 2.54 mm | ||||||||||||||||||||||||||
CnC Tech, LLC | -40 °C | 105 ░C | Square | All | Keying Slot | 2.03 µm | 80 µin | Male Pin | UL94 V-0 | Latch Lock/Eject Hooks Long | Board to Cable/Wire | 8.3 mm | 0.327 " | Brass | 2.54 mm | 0.1 in | 0.134 in | 3.4 mm | 0.1 in | 2.54 mm | 16 | Header | Shrouded - 4 Wall | 2 | Through Hole Right Angle | Solder | Polybutylene Terephthalate (PBT) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
3010-16 Series
Connector Header Surface Mount 16 position 0.100" (2.54mm)
