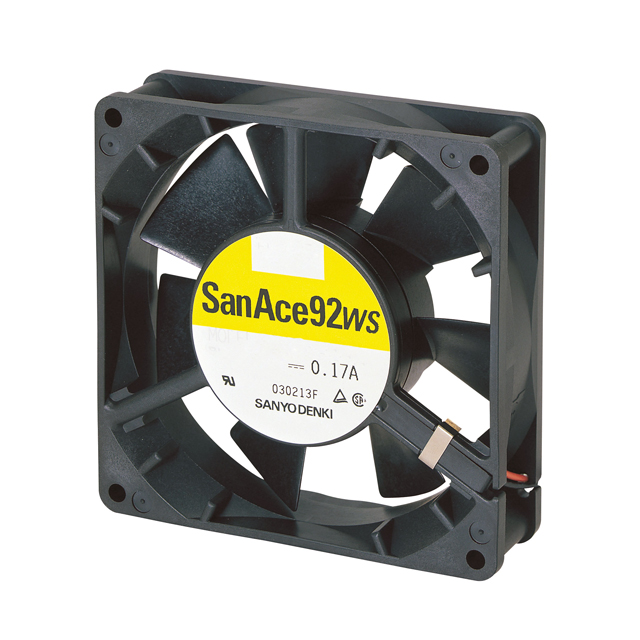

9WS0912F401

Active

Sanyo Denki America Inc.

FAN AXIAL 92X25MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Numbering System Splash Proof Fan

9WS0912F401

Active

Sanyo Denki America Inc.

FAN AXIAL 92X25MM 12VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Numbering System Splash Proof Fan

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	9WS0912F401	9WS0912 Series

Air Flow	1.17 m³/min	0.79 - 1.36 m³/min
Air Flow	41.7 CFM	28.2 - 48.7 CFM
Approval Agency	CSA, TUV, UL	CSA, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	-	0.17 - 100 A
Fan Type	Tubeaxial	Tubeaxial
Features	Speed Sensor (Tach)	Speed Sensor (Tach)
Ingress Protection	IP54 - Dust Protected, Water Resistant	IP54 - Dust Protected, Water Resistant
Lifetime @ Temp.	40000 Hrs	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	30 dB(A)	23 - 33 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	1.56 W	1.2 - 720 W
RPM	2450 RPM	1700 - 2850 RPM
Static Pressure	0.13 in H2O	0.067 - 0.181 in H2O
Static Pressure	32.4 Pa	16.7 - 45.1 Pa
Termination	3 Wire Leads	2 Wire Leads, 3 Wire Leads
Voltage - Rated	12 VDC	12 VDC
Voltage Range [Max]	13.8 VDC	13.8 VDC
Voltage Range [Min]	10.2 VDC	10.2 VDC
Weight	150.14 g	150.14 g
Weight	0.331 lb	0.331 lb
Width [y]	25 mm	25 mm

9WS0912 Series

FAN AXIAL 92X25MM 12VDC WIRE

Part	Current Rating (Amps)	RPM	Weight	Weight	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Range [Min]	Voltage Range [Max]	Voltage - Rated	Air Flow	Air Flow	Noise	Material - Frame	Material - Blade	Ingress Protection	Fan Type	Approval Agency	Bearing Type	Width [y]	Termination	Static Pressure	Static Pressure	Power (Watts)	Features
Sanyo Denki America Inc. 9WS0912H402	0.17 A	2850 RPM	150.14 g	0.331 lb	40000 Hrs	-20 °C	70 °C	-20 C	70 °C	10.2 VDC	13.8 VDC	12 VDC	1.36 m³/min	48.7 CFM	33 dB(A)	Plastic	Plastic	IP54 - Dust Protected, Water Resistant	Tubeaxial	CSA, TUV, UL	Ball	25 mm	2 Wire Leads	0.181 in H2O	45.1 Pa
Sanyo Denki America Inc. 9WS0912F402		2450 RPM	150.14 g	0.331 lb	40000 Hrs	-20 °C	70 °C	-20 C	70 °C	10.2 VDC	13.8 VDC	12 VDC	1.17 m³/min	41.7 CFM	30 dB(A)	Plastic	Plastic	IP54 - Dust Protected, Water Resistant	Tubeaxial	CSA, TUV, UL	Ball	25 mm	2 Wire Leads	0.13 in H2O	32.4 Pa	1.56 W
Sanyo Denki America Inc. 9WS0912F401		2450 RPM	150.14 g	0.331 lb	40000 Hrs	-20 °C	70 °C	-20 C	70 °C	10.2 VDC	13.8 VDC	12 VDC	1.17 m³/min	41.7 CFM	30 dB(A)	Plastic	Plastic	IP54 - Dust Protected, Water Resistant	Tubeaxial	CSA, TUV, UL	Ball	25 mm	3 Wire Leads	0.13 in H2O	32.4 Pa	1.56 W	Speed Sensor (Tach)
Sanyo Denki America Inc. 9WS0912M402	100 mA	2100 RPM	150.14 g	0.331 lb	40000 Hrs	-20 °C	70 °C	-20 C	70 °C	10.2 VDC	13.8 VDC	12 VDC	1 m³/min	35.7 CFM	27 dB(A)	Plastic	Plastic	IP54 - Dust Protected, Water Resistant	Tubeaxial	CSA, TUV, UL	Ball	25 mm	2 Wire Leads	0.094 in H2O	23.5 Pa	1.2 W
Sanyo Denki America Inc. 9WS0912M401	100 mA	2100 RPM	150.14 g	0.331 lb	40000 Hrs	-20 °C	70 °C	-20 C	70 °C	10.2 VDC	13.8 VDC	12 VDC	1 m³/min	35.7 CFM	27 dB(A)	Plastic	Plastic	IP54 - Dust Protected, Water Resistant	Tubeaxial	CSA, TUV, UL	Ball	25 mm	3 Wire Leads	0.094 in H2O	23.5 Pa	1.2 W	Speed Sensor (Tach)
Sanyo Denki America Inc. 9WS0912L402	60 mA	1700 RPM	150.14 g	0.331 lb	40000 Hrs	-20 °C	70 °C	-20 C	70 °C	10.2 VDC	13.8 VDC	12 VDC	0.79 mł/min	28.2 CFM	23 dB(A)	Plastic	Plastic	IP54 - Dust Protected, Water Resistant	Tubeaxial	CSA, TUV, UL	Ball	25 mm	2 Wire Leads	0.067 in H2O	16.7 Pa	720 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	40	$ 65.54

Description

General part information

9WS0912 Series

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 41.7 CFM (1.17m³/min) 3 Wire Leads
