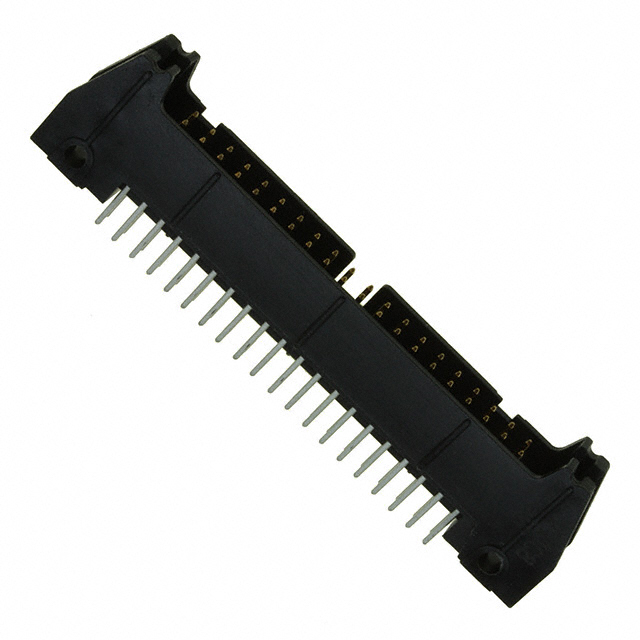

D3432-6002-AR
Obsolete3M (TC)
CONN HEADER VERT 40POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | D3432-6002-AR |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Finish Thickness - Post | 1 çm |
| Contact Finish Thickness - Post | 39.4 çin |
| Contact Length - Mating | 6.1 mm |
| Contact Length - Mating [x] | 0.24 in |
| Contact Length - Post | 2.84 mm |
| Contact Length - Post | 0.112 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 1.75 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 17.27 mm |
| Insulation Height | 0.68 in |
| Insulation Material | Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Overall Contact Length | 0.652 in |
| Overall Contact Length | 16.56 mm |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
