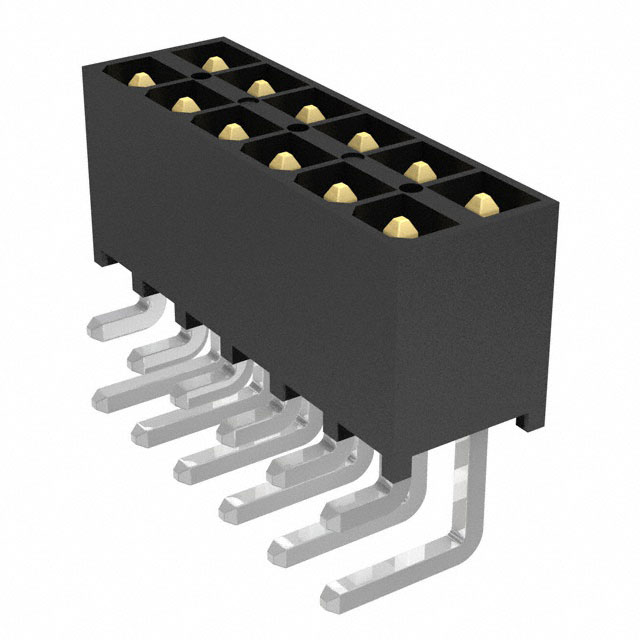

IPT1-106-01-S-D-RA

Active

Samtec Inc.

CONN HEADER R/A 12POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet .100" Mini Mate® Isolated Power Connector Terminal Strip +1

IPT1-106-01-S-D-RA

Active

Samtec Inc.

CONN HEADER R/A 12POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet .100" Mini Mate® Isolated Power Connector Terminal Strip +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPT1-106-01-S-D-RA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	3.94 mm
Contact Length - Mating	0.155 in
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Termination	Solder
Voltage Rating	775 VAC, 1095 VDC

IPT1-106 Series

Part	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Termination	Contact Type	Voltage Rating	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Contact Material	Contact Finish - Mating	Overall Contact Length	Overall Contact Length	Mounting Type	Connector Type	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Insulation Color	Fastening Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Number of Positions	Number of Rows	Insulation Material	Contact Finish - Post	Number of Positions Loaded	Features	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length
Samtec Inc. IPT1-106-01-S-D	All	2.16 mm	0.085 in	6.35 mm	0.25 in	Solder	Male Pin	775 VAC 1095 VDC	Shrouded - 4 Wall	2.54 mm	0.1 in	0.1 in	2.54 mm	Phosphor Bronze	Gold	8.51 mm	0.335 in	Through Hole	Header	3.94 mm	0.155 in	2.3 A	Black	Push-Pull	UL94 V-0	-55 °C	125 °C	30 Áin	0.76 Ám	Square	12	2	Liquid Crystal Polymer (LCP)	Tin
Samtec Inc. IPT1-106-01-L-D-VS-FL-PL				6.35 mm	0.25 in	Solder	Male Pin	775 VAC 1095 VDC	Shrouded - 4 Wall	2.54 mm	0.1 in	0.1 in	2.54 mm	Phosphor Bronze	Gold			Surface Mount	Header	3.94 mm	0.155 in	2.3 A	Black	Friction Lock	UL94 V-0	-55 °C	125 °C	10 çin	0.25 çm	Square	12	2	Liquid Crystal Polymer (LCP)	Tin	11
Samtec Inc. IPT1-106-01-L-D-VS-A-K	All			6.35 mm	0.25 in	Solder	Male Pin	775 VAC 1095 VDC	Shrouded - 4 Wall	2.54 mm	0.1 in	0.1 in	2.54 mm	Phosphor Bronze	Gold			Surface Mount	Header	3.94 mm	0.155 in	2.3 A	Black	Push-Pull	UL94 V-0	-55 °C	125 °C	10 çin	0.25 çm	Square	12	2	Liquid Crystal Polymer (LCP)	Tin		Board Guide Pick and Place
Samtec Inc. IPT1-106-04-L-D	All			12.3 mm	0.484 in	Solder	Male Pin	775 VAC 1095 VDC	Shrouded - 4 Wall	2.54 mm	0.1 in	0.1 in	2.54 mm	Phosphor Bronze	Gold	14.99 mm	0.59 in	Through Hole	Header	3.94 mm	0.155 in	2.3 A	Black	Push-Pull	UL94 V-0	-55 °C	125 °C	10 çin	0.25 çm	Square	12	2	Liquid Crystal Polymer (LCP)	Tin			0.106 in	2.69 mm
Samtec Inc. IPT1-106-01-S-D-RA	All	2.29 mm	0.09 "			Solder	Male Pin	775 VAC 1095 VDC	Shrouded - 4 Wall	2.54 mm	0.1 in	0.1 in	2.54 mm	Phosphor Bronze	Gold			Through Hole Right Angle	Header	3.94 mm	0.155 in	2.3 A	Black	Push-Pull	UL94 V-0	-55 °C	125 °C	30 Áin	0.76 Ám	Square	12	2	Liquid Crystal Polymer (LCP)	Tin
Samtec Inc. IPT1-106-01-L-D-VS-PL				6.35 mm	0.25 in	Solder	Male Pin	775 VAC 1095 VDC	Shrouded - 4 Wall	2.54 mm	0.1 in	0.1 in	2.54 mm	Phosphor Bronze	Gold			Surface Mount	Header	3.94 mm	0.155 in	2.3 A	Black	Push-Pull	UL94 V-0	-55 °C	125 °C	10 çin	0.25 çm	Square	12	2	Liquid Crystal Polymer (LCP)	Tin	11
Samtec Inc. IPT1-106-01-L-D-VS	All			6.35 mm	0.25 in	Solder	Male Pin	775 VAC 1095 VDC	Shrouded - 4 Wall	2.54 mm	0.1 in	0.1 in	2.54 mm	Phosphor Bronze	Gold			Surface Mount	Header	3.94 mm	0.155 in	2.3 A	Black	Push-Pull	UL94 V-0	-55 °C	125 °C	10 çin	0.25 çm	Square	12	2	Liquid Crystal Polymer (LCP)	Tin
Samtec Inc. IPT1-106-01-L-D-RA-PL	All	2.29 mm	0.09 "			Solder	Male Pin	775 VAC 1095 VDC	Shrouded - 4 Wall	2.54 mm	0.1 in	0.1 in	2.54 mm	Phosphor Bronze	Gold			Through Hole Right Angle	Header	3.94 mm	0.155 in	2.3 A	Black	Push-Pull	UL94 V-0	-55 °C	125 °C	10 çin	0.25 çm	Square	12	2	Liquid Crystal Polymer (LCP)	Tin
Samtec Inc. IPT1-106-01-S-D-VS-LC	All			6.35 mm	0.25 in	Solder	Male Pin	775 VAC 1095 VDC	Shrouded - 4 Wall	2.54 mm	0.1 in	0.1 in	2.54 mm	Phosphor Bronze	Gold			Surface Mount	Header	3.94 mm	0.155 in	2.3 A	Black	Push-Pull	UL94 V-0	-55 °C	125 °C	30 Áin	0.76 Ám	Square	12	2	Liquid Crystal Polymer (LCP)	Tin
Samtec Inc. IPT1-106-02-L-D	All	2.64 mm	0.104 in	9.3 mm	0.366 in	Solder	Male Pin	775 VAC 1095 VDC	Shrouded - 4 Wall	2.54 mm	0.1 in	0.1 in	2.54 mm	Phosphor Bronze	Gold	0.47 "		Through Hole	Header	3.94 mm	0.155 in	2.3 A	Black	Push-Pull	UL94 V-0	-55 °C	125 °C	10 çin	0.25 çm	Square	12	2	Liquid Crystal Polymer (LCP)	Tin					11.94 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.44
		25	$ 4.02
		50	$ 3.73
		100	$ 3.55
		500	$ 3.31
		1000	$ 2.52
