NJU4053BM

Active

Nisshinbo Micro Devices Inc

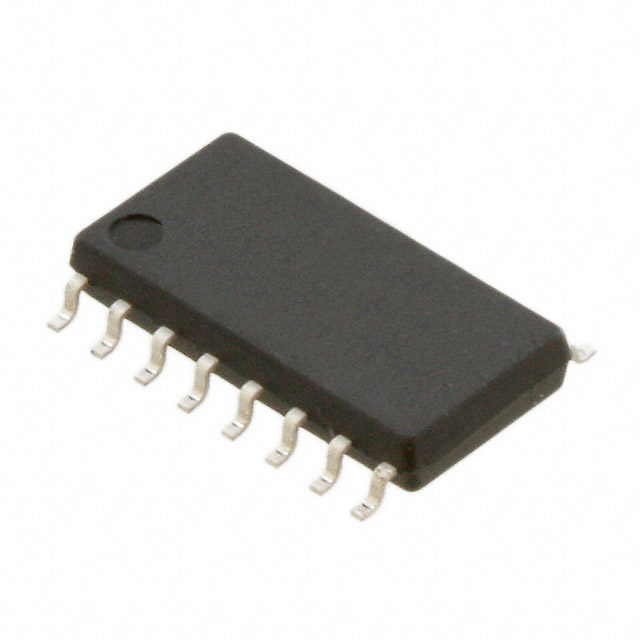

IC SWITCH SPDT X 3 160OHM 16DMP

Search across all available documentation for this part.

Active

Nisshinbo Micro Devices Inc

IC SWITCH SPDT X 3 160OHM 16DMP

Technical Specifications

Parameters and characteristics for this part

Specification	NJU4053BM

Channel-to-Channel Matching (ΔRon)	5 Ohm
Current - Leakage (IS(off)) (Max) [Max]	100 nA
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	3
On-State Resistance (Max) [Max]	160 Ohms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	0.209 "
Package / Case	16-SOIC
Package / Case	5.3 mm
Supplier Device Package	16-DMP
Switch Circuit	SPDT
Switch Time (Ton, Toff) (Max) [custom]	500 ns
Switch Time (Ton, Toff) (Max) [custom]	500 ns
Voltage - Supply, Single (V+) [Max]	18 V
Voltage - Supply, Single (V+) [Min]	3 V

Part	On-State Resistance (Max) [Max]	Number of Circuits	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Current - Leakage (IS(off)) (Max) [Max]	Package / Case	Package / Case	Package / Case	Mounting Type	Multiplexer/Demultiplexer Circuit	Channel-to-Channel Matching (ΔRon)	Switch Circuit	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]
Nisshinbo Micro Devices Inc NJU4053BM	160 Ohms	3	500 ns	500 ns	18 V	3 V	100 nA	0.209 "	16-SOIC	5.3 mm	Surface Mount	2:1	5 Ohm	SPDT	16-DMP	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2000	$ 0.58

General part information

3 Circuit IC Switch 2:1 160Ohm 16-DMP
