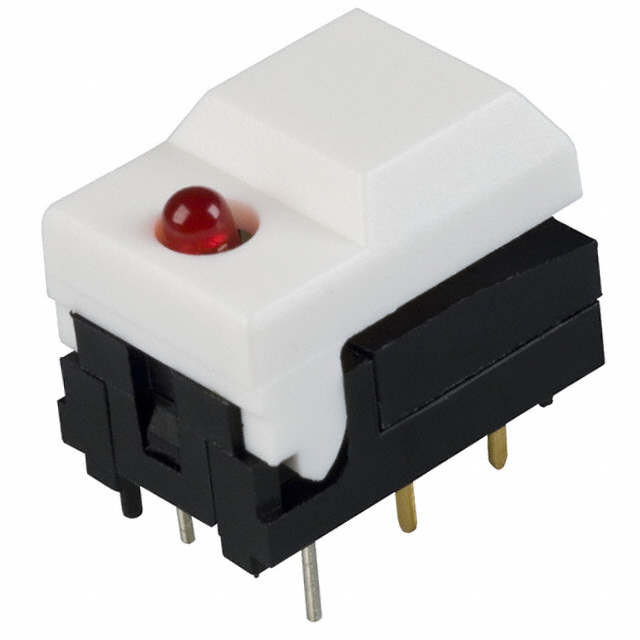

5501MWHTRED

Active

E-Switch

SWITCH PUSH SPDT 0.3A 12V

Deep-Dive with AI

Search across all available documentation for this part.

5501MWHTRED

Active

E-Switch

SWITCH PUSH SPDT 0.3A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5501MWHTRED

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPDT
Color - Actuator/Cap	White
Current Rating (Amps)	300 mA
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	2.2 VDC
Mechanical Life	500000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Keyswitch, Illuminated
Voltage Rating - DC	12 V

5501 Series

Part	Switch Function	Circuit	Actuator Marking	Voltage Rating - DC	Mechanical Life	Type	Color - Actuator/Cap	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Mounting Type	Actuator Type	Current Rating (Amps)	Illumination Voltage (Nominal)
E-Switch 5501MREDGRN	On-Mom	SPDT	No Marking	12 V	500000 Cycles	Keyswitch Illuminated	Red	PC Pin	65 °C	-25 °C	Green LED	Through Hole	Button Square	300 mA	2.2 VDC
E-Switch 5501MYELYEL	On-Mom	SPDT	No Marking	12 V	500000 Cycles	Keyswitch Illuminated	Yellow	PC Pin	65 °C	-25 °C	LED Yellow	Through Hole	Button Square	300 mA	2.2 VDC
E-Switch 5501MGRYYELGRN	On-Mom	SPDT	No Marking	12 V	500000 Cycles	Keyswitch Illuminated		PC Pin	65 °C	-25 °C	Green LED Yellow	Through Hole	Button Square	300 mA	2.2 VDC
E-Switch 5501MGRYRED	On-Mom	SPDT	No Marking	12 V	500000 Cycles	Keyswitch Illuminated		PC Pin	65 °C	-25 °C	LED Red	Through Hole	Button Square	300 mA	2.2 VDC
E-Switch 5501M7X	On-Mom	SPDT	No Marking	12 V	500000 Cycles	Keyswitch		PC Pin	65 °C	-25 °C		Through Hole	Button Square	300 mA
E-Switch 5501MBLKRED	On-Mom	SPDT	No Marking	12 V	500000 Cycles	Keyswitch Illuminated	Black	PC Pin	65 °C	-25 °C	LED Red	Through Hole	Button Square	300 mA	2.2 VDC
E-Switch 5501MBLUGRN	On-Mom	SPDT	No Marking	12 V	500000 Cycles	Keyswitch Illuminated	Blue	PC Pin	65 °C	-25 °C	Green LED	Through Hole	Button Square	300 mA	2.2 VDC
E-Switch 5501MGRYX	On-Mom	SPDT	No Marking	12 V	500000 Cycles	Keyswitch		PC Pin	65 °C	-25 °C		Through Hole	Button Square	300 mA
E-Switch 5501MREDGRNRED	On-Mom	SPDT	No Marking	12 V	500000 Cycles	Keyswitch Illuminated	Red	PC Pin	65 °C	-25 °C	Green/Red LED	Through Hole	Button Square	30 mA	2.2 VDC
E-Switch 5501MWHTRED	On-Mom	SPDT	No Marking	12 V	500000 Cycles	Keyswitch Illuminated	White	PC Pin	65 °C	-25 °C	LED Red	Through Hole	Button Square	300 mA	2.2 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 2.75

Description

General part information

5501 Series

Pushbutton Switch SPDT Keyswitch, Illuminated Through Hole

Documents

Technical documentation and resources

No documents available
