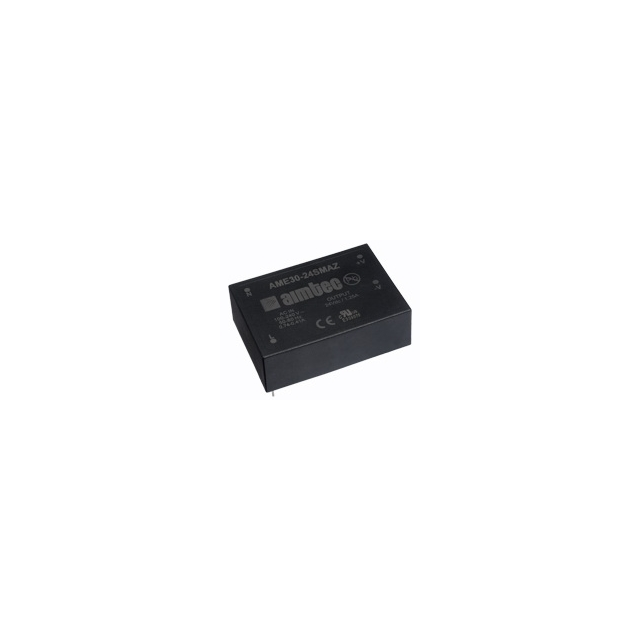

Specification	AME30-5SMAZ

Applications	ITE (Commercial), Medical
Approval Agency	cURus, CE, CB, UL, cULus
Current - Output (Max)	6 A
Efficiency	82 %
Features	Universal Input
Line Regulation	1 %
Load Regulation (Percent)	1 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package Leads	4 Leads
Package Name	5-DIP Module
Power (Watts)	30 W
Size / Dimension Height	1.18 in
Size / Dimension Length	3.56 in
Size / Dimension Width	2.48 in
Standard Number	60601-1
Type	Enclosed
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Input (DC) Maximum	370 V
Voltage - Input (DC) Minimum	130 V
Voltage - Output 1	5 V
Weight	0.661 lb

AME30 Series

Part	Line Regulation	Approval Agency	Load Regulation (Percent)	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Voltage - Input (DC) Maximum	Voltage - Input (DC) Minimum	Operating Temperature (Max)	Operating Temperature (Min)	Type	Applications	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Voltage - Output 1	Mounting Type	Power (Watts)	Package Leads	Package Name	Number of Outputs	Features	Current - Output (Max)	Standard Number	Efficiency	Package / Case	Weight
aimtec AME30-12SMAZ	1 %	CB CE cULus cURus UL	1 %	90 V	264 V	370 V	130 V	85 °C	-40 °C	Enclosed	ITE (Commercial) Medical	3.56 in	2.48 in	1.18 in	12 V	Through Hole	30 W	4 Leads	5-DIP Module	1	Universal Input	2.5 A	60601-1	84 %
aimtec AME30-24DMAZ	1 %	CB CE cURus	1 %	90 V	264 V	370 V	130 V	85 °C	-40 °C	Enclosed	ITE (Commercial) Medical	3.56 in	2.48 in	1.18 in	24 V	Through Hole	30 W			2	Universal Input	625 mA		77 %	5-DIP Module
aimtec AME30-5DMAZ	1 %	CB CE cURus	2 %	90 V	264 V	370 V	130 V	85 °C	-40 °C	Enclosed	ITE (Commercial) Medical	3.56 in	2.48 in	1.18 in	5 V	Through Hole	30 W			2	Universal Input	3 A		80 %	5-DIP Module
aimtec AME30-15DMAZ	1 %	CB CE cURus	1 %	90 V	264 V	370 V	130 V	85 °C	-40 °C	Enclosed	ITE (Commercial) Medical	3.56 in	2.48 in	1.18 in	15 V	Through Hole	30 W			2	Universal Input	1 A		82 %	5-DIP Module
aimtec AME30-5SMAZ	1 %	CB CE cULus cURus UL	1 %	90 V	264 V	370 V	130 V	85 °C	-40 °C	Enclosed	ITE (Commercial) Medical	3.56 in	2.48 in	1.18 in	5 V	Through Hole	30 W	4 Leads	5-DIP Module	1	Universal Input	6 A	60601-1	82 %		0.661 lb
aimtec AME30-24SMAZ	1 %	CB CE cULus cURus UL	1 %	90 V	264 V	370 V	130 V	85 °C	-40 °C	Enclosed	ITE (Commercial) Medical	3.56 in	2.48 in	1.18 in	24 V	Through Hole	30 W	4 Leads	5-DIP Module	1	Universal Input	1.25 A	60601-1	83 %
aimtec AME30-3.3SMAZ	1 %	CB CE cULus cURus UL	1 %	90 V	264 V	370 V	130 V	85 °C	-40 °C	Enclosed	ITE (Commercial) Medical	3.56 in	2.48 in	1.18 in	3.3 V	Through Hole	20 W	4 Leads	5-DIP Module	1	Universal Input	6 A	60601-1	79 %
aimtec AME30-12DMAZ	1 %	CB CE cURus	2 %	90 V	264 V	370 V	130 V	85 °C	-40 °C	Enclosed	ITE (Commercial) Medical	3.56 in	2.48 in	1.18 in	12 V	Through Hole	30 W			2	Universal Input	1.25 A		82 %	5-DIP Module
aimtec AME30-15SMAZ	1 %	CB CE cULus cURus UL	1 %	90 V	264 V	370 V	130 V	85 °C	-40 °C	Enclosed	ITE (Commercial) Medical	3.56 in	2.48 in	1.18 in	15 V	Through Hole	30 W	4 Leads	5-DIP Module	1	Universal Input	2 A	60601-1	84 %
