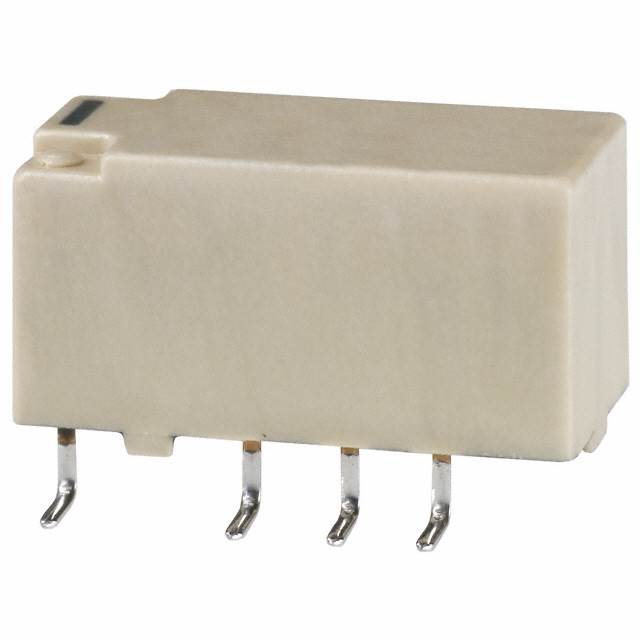

ASX210A4H

Obsolete

Panasonic Electric Works

RELAY TELECOM DPDT 10MA 4.5V

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

RELAY TELECOM DPDT 10MA 4.5V

Technical Specifications

Parameters and characteristics for this part

Specification	ASX210A4H

Approval Agency	CSA, UR
Coil Current	7.8 mA
Coil Resistance	579 Ohms
Coil Type	Latching, Single Coil
Coil Voltage	4.5 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Palladium (AgPd), Gold (Au)
Contact Rating (Current)	10 mA
Load - Max Switching	100 W
Mounting Type	Surface Mount
Must Operate Voltage	3.6 VDC
Operate Time	5 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	Telecom
Release Time	5 ms
Switching Voltage	10 VDC
Termination Style	Gull Wing

Part	Coil Resistance	Coil Voltage	Relay Type	Approval Agency	Load - Max Switching	Mounting Type	Termination Style	Operate Time	Coil Current	Must Operate Voltage	Switching Voltage	Contact Form	Contact Material	Contact Rating (Current)	Release Time	Operating Temperature [Min]	Operating Temperature [Max]	Coil Type
Panasonic Electric Works ASX21012	4.11 kOhms	12 VDC	Telecom	CSA UR	100 W	Through Hole	PC Pin	5 ms	2.9 mA	9.6 VDC	10 VDC	DPDT (2 Form C)	Gold (Au) Silver Palladium (AgPd)	10 mA	5 ms	-40 °C	70 °C	Latching Single Coil
Panasonic Electric Works ASX210A4H	579 Ohms	4.5 VDC	Telecom	CSA UR	100 W	Surface Mount	Gull Wing	5 ms	7.8 mA	3.6 VDC	10 VDC	DPDT (2 Form C)	Gold (Au) Silver Palladium (AgPd)	10 mA	5 ms	-40 °C	70 °C	Latching Single Coil
Panasonic Electric Works ASX210A24	11.52 kOhms	24 VDC	Telecom	CSA UR	100 W	Surface Mount	Gull Wing	5 ms	2.1 mA	19.2 VDC	10 VDC	DPDT (2 Form C)	Gold (Au) Silver Palladium (AgPd)	10 mA	5 ms	-40 °C	70 °C	Latching Single Coil
