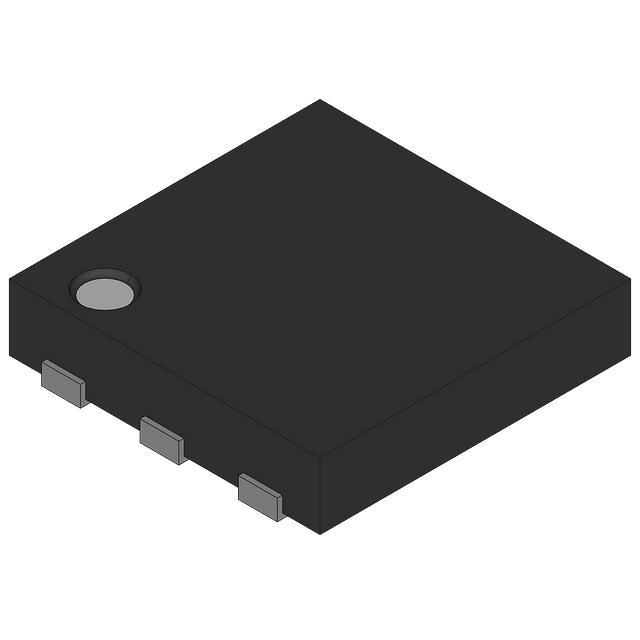

LM2831XSD-NS
ActiveNational Semiconductor
IC REG BUCK ADJ 1.5A 6WSON
Deep-Dive with AI
Search across all available documentation for this part.
LM2831XSD-NS
ActiveNational Semiconductor
IC REG BUCK ADJ 1.5A 6WSON
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LM2831XSD-NS |
|---|---|
| Current - Output | 1.5 A |
| Frequency - Switching | 1.6 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Supplier Device Package | 6-WSON (3x3) |
| Synchronous Rectifier | False |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 3 V |
| Voltage - Output (Max) [Max] | 4.5 V |
| Voltage - Output (Min/Fixed) | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 222 | $ 1.35 | |
Description
General part information
LM2831 Series
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 1.5A 6-WDFN Exposed Pad
Documents
Technical documentation and resources
No documents available
