01-131.025
ActiveEAO

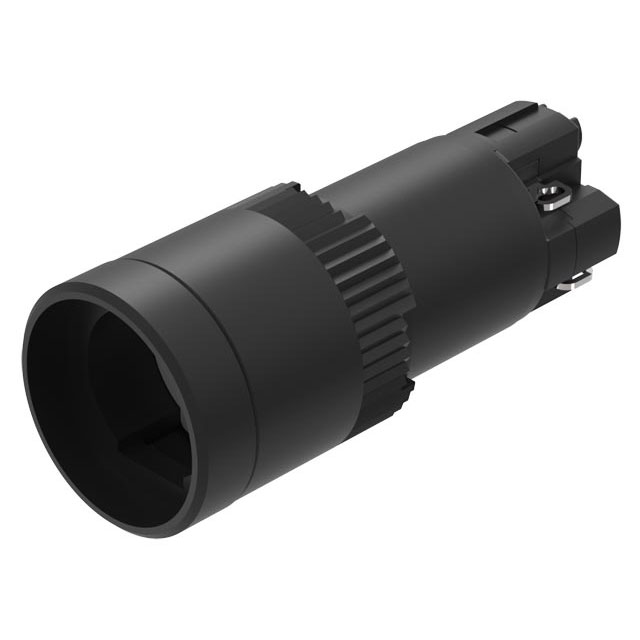

SWITCH PB DPST-NO/NC 5A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
01-131.025
ActiveEAO
SWITCH PB DPST-NO/NC 5A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 01-131.025 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button (Not Included) |
| Circuit | DPST-NO/NC |
| Current Rating (Amps) | 5 A |
| Ingress Protection | IP40 |
| Mechanical Life | 2000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 16 mm |
| Switch Function | Off-Mom, On-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 42.85 | |
| 10 | $ 38.99 | |||
| 25 | $ 37.18 | |||
| 50 | $ 34.69 | |||
| 100 | $ 33.33 | |||
| 250 | $ 31.06 | |||
01-131 Series
SWITCH PB DPST-NO/NC 5A 250V
| Part | Actuator Marking | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Type | Panel Cutout Dimensions [diameter] | Mounting Type | Actuator Type | Switch Function | Termination Style | Mechanical Life | Current Rating (Amps) | Circuit | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 01-131.025 | No Marking | 55 °C | -25 °C | 250 V | Standard | 16 mm | Panel Mount, Front | Round, Button (Not Included) | Off-Mom, On-Mom | Solder Lug | 2000000 Cycles | 5 A | DPST-NO/NC | IP40 |
Description
General part information
01-131 Series
Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
