Q-2P01T0003002M

Active

Amphenol Custom Cable

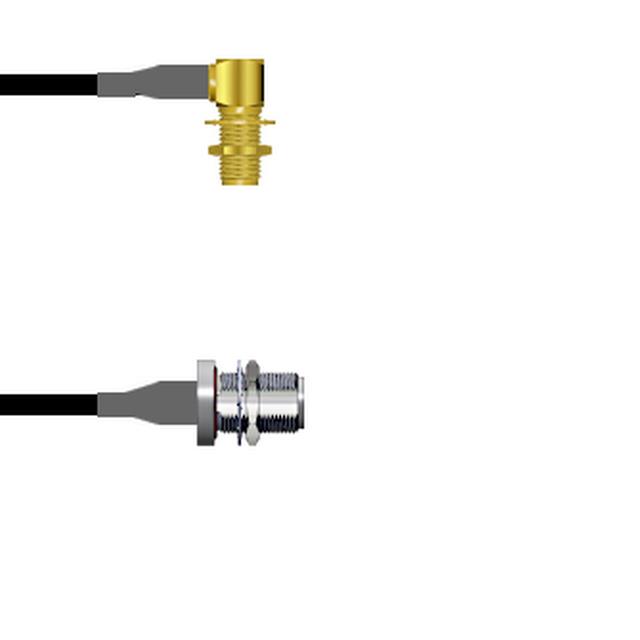

COAX CBL SMA TO N-TYPE 6.6'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL SMA TO N-TYPE 6.6'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2P01T0003002M

1st Connector	SMA Jack, Right Angle
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	6.6 ft
Length	78.7 in
Length	2 m
Overall Impedance	50 Ohms
Style	SMA to N-Type

Part	Style	2nd Contact Gender	2nd Connector Mounting Type	1st Contact Gender	Frequency - Max [Max]	2nd Connector Mounting Feature	Overall Impedance	1st Connector	Cable Type	1st Connector Mounting Feature	Connector Impedance	Features	Cable Impedance	Color	1st Connector Mounting Type	Length	Length	Length	2nd Connector
Amphenol Custom Cable Q-2P01T0005002M	SMA to N-Type	Female	Panel Mount	Female	3 GHz	Bulkhead - Front Side Nut	50 Ohms	Right Angle SMA Jack	RG-316	Bulkhead - Front Side Nut	50 Ohms	Shielded	50 Ohms	Copper	Panel Mount	6.6 ft	78.7 in	2 m	N-Type Jack
Amphenol Custom Cable Q-2P01T0003002M	SMA to N-Type	Female	Panel Mount	Female	1 GHz	Bulkhead - Front Side Nut	50 Ohms	Right Angle SMA Jack	RG-174	Bulkhead - Front Side Nut	50 Ohms	Shielded	50 Ohms	Black	Panel Mount	6.6 ft	78.7 in	2 m	N-Type Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to N-Type RG-174 78.7" (2.0m) 6.6'
