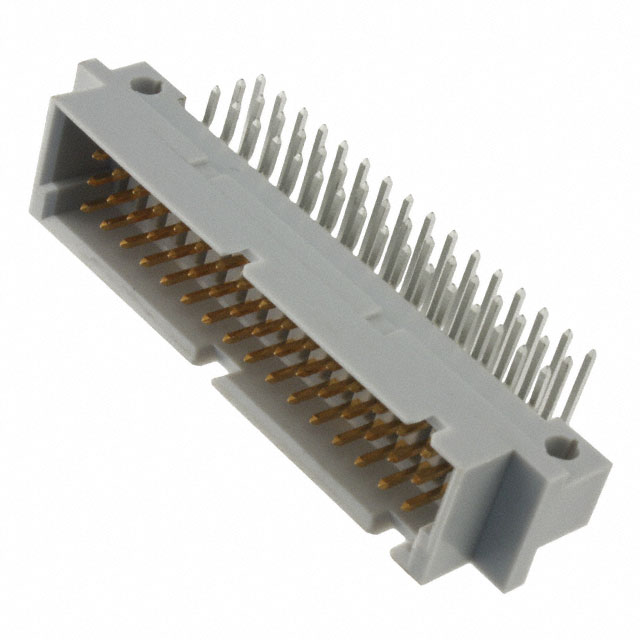

DIN-048CPC-SR1-HM

Active

3M (TC)

80001222092 DIN-048CPC-SR1-HM=DIN/48P/C-HDR/RA/CUSTOM/10PDNI/ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DIN-048CPC-SR1-HM

Active

3M (TC)

80001222092 DIN-048CPC-SR1-HM=DIN/48P/C-HDR/RA/CUSTOM/10PDNI/ROHS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DIN-048CPC-SR1-HM

Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Current Rating (Amps)	3 A
Material - Insulation	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	48
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Style	C/2
Style	1/2 C
Termination	Solder

DIN-048C Series

Part	Material - Insulation	Pitch [x]	Pitch [x]	Number of Rows	Number of Positions Loaded	Termination	Connector Type	Number of Positions	Style	Style	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Finish	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating
3M (TC) DIN-048CPC-SR1-TG30	Polybutylene Terephthalate (PBT) Glass Filled	2.54 mm	0.1 in	3	All	Solder	Male Pins Plug	48	C/2	1/2 C	0.76 Ám	30 Áin	Through Hole Right Angle	Gold	3 A	-55 °C	125 °C	UL94 V-0
3M (TC) DIN-048CSC-PSL-HM	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2.54 mm	0.1 in	3	All	Press-Fit	Receptacle Female Sockets	48	C/2	1/2 C	0.076 Ám	3 Áin	Through Hole	Gold	3 A	-55 °C	125 °C	UL94 V-0
3M (TC) DIN-048CSC-S1L-TR	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2.54 mm	0.1 in	3	All	Solder	Receptacle Female Sockets	48	C/2	1/2 C	0.076 Ám	3 Áin	Through Hole	Gold	3 A	-55 °C	125 °C	UL94 V-0
3M (TC) DIN-048CSC-PW1-KV	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2.54 mm	0.1 in	3	All	Press-Fit	Receptacle Female Sockets	48	C/2	1/2 C	0.76 Ám	30 Áin	Through Hole	Gold	3 A	-55 °C	125 °C	UL94 V-0
3M (TC) DIN-048CPC-SR1-KR	Polybutylene Terephthalate (PBT) Glass Filled	2.54 mm	0.1 in	3	All	Solder	Male Pins Plug	48	C/2	1/2 C	0.76 Ám	30 Áin	Through Hole Right Angle	Gold	3 A	-55 °C	125 °C	UL94 V-0
3M (TC) DIN-048CSC-S3L-TR	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2.54 mm	0.1 in	3	All	Solder	Receptacle Female Sockets	48	C/2	1/2 C	0.076 Ám	3 Áin	Through Hole	Gold	3 A	-55 °C	125 °C	UL94 V-0
3M (TC) DIN-048CSC-R1L-HM	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2.54 mm	0.1 in	3	All	Solder	Receptacle Female Sockets	48	C/2	1/2 C	0.076 Ám	3 Áin	Through Hole	Gold	3 A	-55 °C	125 °C	UL94 V-0
3M (TC) DIN-048CPC-SR1-HM	Polybutylene Terephthalate (PBT) Glass Filled	2.54 mm	0.1 in	3	All	Solder	Male Pins Plug	48	C/2	1/2 C	0.076 Ám	3 Áin	Through Hole Right Angle	Gold	3 A	-55 °C	125 °C	UL94 V-0
3M (TC) DIN-048CSC-S1-TG30	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2.54 mm	0.1 in	3	All	Solder	Receptacle Female Sockets	48	C/2	1/2 C	0.76 Ám	30 Áin	Through Hole	Gold	3 A	-55 °C	125 °C	UL94 V-0
3M (TC) DIN-048CSC-S1-TR	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2.54 mm	0.1 in	3	All	Solder	Receptacle Female Sockets	48	C/2	1/2 C	0.076 Ám	3 Áin	Through Hole	Gold	3 A	-55 °C	125 °C	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1152	$ 3.51
Newark	Each	1000	$ 4.17

Description

General part information

DIN-048C Series

48 Position Din Connector Plug, Male Pins Gold Through Hole, Right Angle
