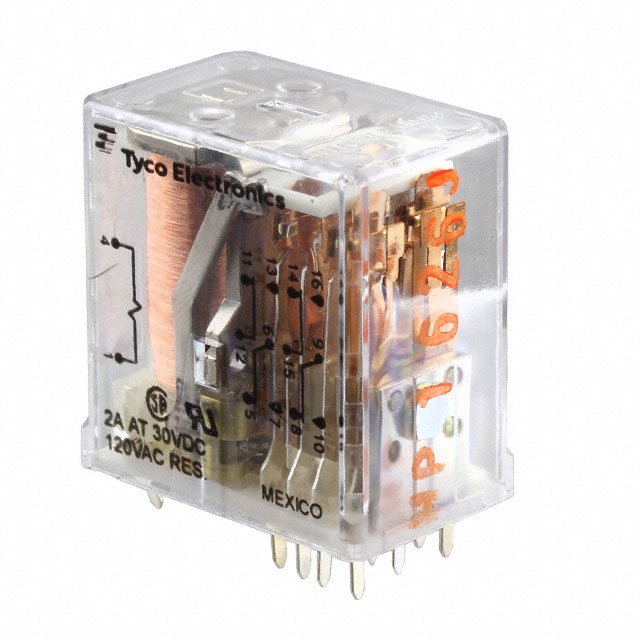

R10-E2Y4-V700
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE 4PDT 3A 24V
Deep-Dive with AI
Search across all available documentation for this part.
R10-E2Y4-V700
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE 4PDT 3A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R10-E2Y4-V700 |
|---|---|
| Approval Agency | CSA, UR |
| Coil Current | 34.3 mA |
| Coil Resistance | 700 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | 4PDT (4 Form C) |
| Contact Material | Silver (Ag) |
| Contact Rating (Current) | 3 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 18 VDC |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -55 °C |
| Relay Type | General Purpose |
| Switching Voltage | 120 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 73.98 | |
| 10 | $ 64.62 | |||
| 25 | $ 61.24 | |||
| 50 | $ 58.79 | |||
| 100 | $ 57.24 | |||
Description
General part information
R10-E2Y4 Series
General Purpose Relay 4PDT (4 Form C) 24VDC Coil Through Hole
Documents
Technical documentation and resources
