1415120

Active

Phoenix Contact

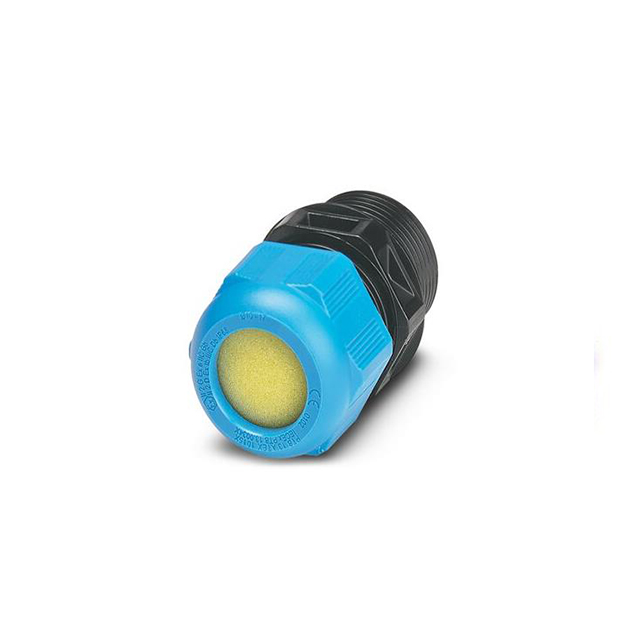

CABLE GLAND 17-28MM M40 POLYAMID

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 17-28MM M40 POLYAMID

Technical Specifications

Parameters and characteristics for this part

Specification	1415120

Color	Black, Blue
Includes	Seal
Ingress Protection	IP66/IP68
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	28 mm
Outside Cable Diameter (Max) [Max] [diameter]	1.102 in
Thread Length	0.709 in
Thread Length	18.01 mm
Type	Cable Gland

CABLE GLAND 17-28MM M40 POLYAMID

Part	Ingress Protection	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Color	Material	Type	Operating Temperature [Min]	Operating Temperature [Max]
Phoenix Contact 1415120	IP66/IP68	0.709 in	18.01 mm	28 mm	1.102 in	Seal	Black, Blue	Polyamide (PA), Nylon	Cable Gland	-40 °C	75 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 14.92

General part information

Cable Gland Polyamide (PA), Nylon M40 Black, Blue
