857-368/006-000

Active

WAGO Corporation

RELAY GEN PURPOSE SPDT 6A 230V

Search across all available documentation for this part.

Active

WAGO Corporation

RELAY GEN PURPOSE SPDT 6A 230V

Technical Specifications

Parameters and characteristics for this part

RELAY GEN PURPOSE SPDT 6A 230V

Part	Coil Voltage	Operate Time	Contact Rating (Current)	Approval Agency	Mounting Type	Coil Current	Switching Voltage	Contact Form	Load - Max Switching	Operating Temperature [Min]	Operating Temperature [Max]	Coil Resistance	Release Time	Contact Material	Features	Coil Type	Relay Type	Termination Style
WAGO Corporation 857-368/006-000	230 VAC	15 ms	6 A	EAC	DIN Rail	16 mA	250 VAC	SPDT (1 Form C)	1500 VA	-40 °C	60 °C	14.38 kOhms	25 ms	Gold (Au), Silver Nickel (AgNi)	Lighted Indicator	Non Latching	General Purpose	Spring Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

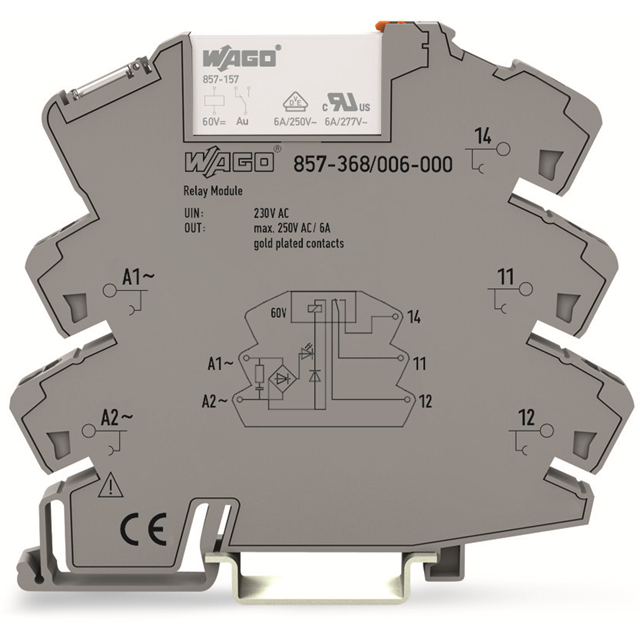

General Purpose Relay SPDT (1 Form C) 230VAC Coil DIN Rail

Technical documentation and resources

No documents available
