General part information

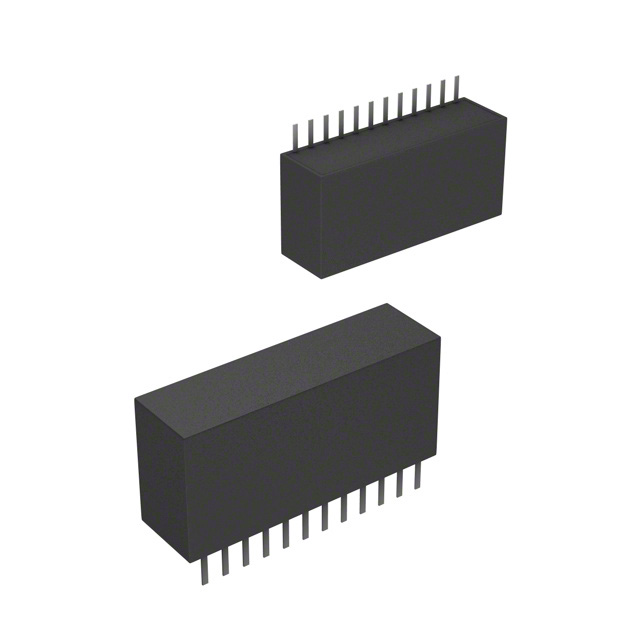

Non-Isolated DC/DC Converters DC/DC REG 4.5-18Vin 1.0-3Vout
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | R-523.3PA | R-523.3 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active High, Enable | Active High, Enable |
| Current - Output (Max) [Max] | 2 A | 2 A |
| Efficiency | 92 % | 92 % |
| Features | Remote On/Off, OCP, SCP | Remote On/Off, OCP, SCP |
| Mounting Type | Through Hole | Through Hole, Right Angle, Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 12-SIP Module | 12-SIP Module |
| Power (Watts) | 6.6 W | 6.6 W |
| Size / Dimension [x] | 32.2 mm | 32.2 mm |
| Size / Dimension [x] | 1.27 in | 1.27 in |
| Size / Dimension [y] | 9.1 mm | 9.1 - 15 mm |
| Size / Dimension [y] | 0.36 " | 0.36 - 0.59 in |
| Size / Dimension [z] | 0.59 in | 0.36 - 0.59 in |
| Size / Dimension [z] | 15 mm | 9.1 - 15 mm |
| Type | Non-Isolated PoL Module | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 18 V | 18 V |
| Voltage - Input (Min) [Min] | 4.5 V | 4.5 V |
| Voltage - Output 1 | 3.3 V | 3.3 V |
Non-Isolated DC/DC Converters DC/DC REG 4.5-18Vin 1.0-3Vout
| Part | Voltage - Input (Max) [Max] | Voltage - Output 1 | Type | Control Features | Power (Watts) | Features | Number of Outputs | Efficiency | Package / Case | Applications | Current - Output (Max) [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Mounting Type | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RECOM Power R-523.3DA | 18 V | 3.3 V | Non-Isolated PoL Module | Active High, Enable | 6.6 W | OCP, Remote On/Off, SCP | 1 | 92 % | 12-SIP Module | ITE (Commercial) | 2 A | 9.1 mm | 15 mm | 1.27 in | 0.59 in | 0.36 in | 32.2 mm | Through Hole, Right Angle | 4.5 V | 85 °C | -40 °C |
RECOM Power R-523.3PA | 18 V | 3.3 V | Non-Isolated PoL Module | Active High, Enable | 6.6 W | OCP, Remote On/Off, SCP | 1 | 92 % | 12-SIP Module | ITE (Commercial) | 2 A | 15 mm | 9.1 mm | 1.27 in | 0.36 " | 0.59 in | 32.2 mm | Through Hole | 4.5 V | 85 °C | -40 °C |
