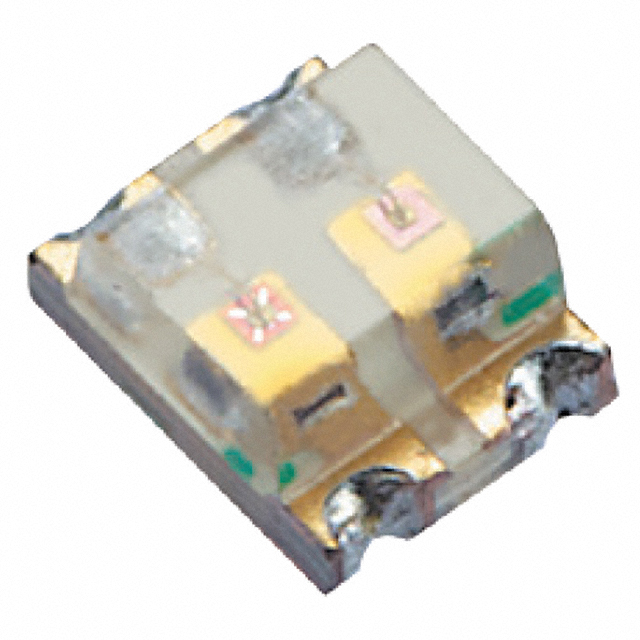

XZMDKCBD62W-1
ActiveSunLED
LED BLUE/RED CLEAR 4SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZMDKCBD62W-1
ActiveSunLED
LED BLUE/RED CLEAR 4SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZMDKCBD62W-1 |
|---|---|
| Color | Blue, Red |
| Configuration | Independent |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Height (Max) [Max] [z] | 0.65 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1.1 mm |
| Lens Size [y] | 1.25 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 79 mcd |
| Millicandela Rating [custom] | 79 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 1.25 mm |
| Supplier Device Package | 4-SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) [custom] | 3.3 V |
| Voltage - Forward (Vf) (Typ) [custom] | 1.95 V |
| Wavelength - Dominant | 630 nm, 465 nm |
| Wavelength - Peak [custom] | 460 nm |
| Wavelength - Peak [custom] | 645 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.67 | |
| 10 | $ 0.46 | |||
| 100 | $ 0.34 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.26 | |||
| Digi-Reel® | 1 | $ 0.67 | ||
| 10 | $ 0.46 | |||
| 100 | $ 0.34 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.26 | |||
| Tape & Reel (TR) | 2000 | $ 0.24 | ||
| 4000 | $ 0.23 | |||
| 6000 | $ 0.22 | |||
| 10000 | $ 0.22 | |||
| 14000 | $ 0.21 | |||
| 20000 | $ 0.21 | |||
| 50000 | $ 0.20 | |||
Description
General part information
XZMDKCBD62 Series
Blue, Red 465nm Blue, 630nm Red LED Indication - Discrete 3.3V Blue, 1.95V Red 4-SMD, No Lead
