Technical Specifications
Parameters and characteristics for this part
| Specification | SD57045-01 |
|---|---|
| Current - Test | 250 mA |
| Current Rating (Amps) | 5 A |
| Frequency | 945 MHz |
| Gain | 15 dB |
| Package / Case | M250 |
| Power - Output | 45 W |
| Supplier Device Package | M250 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 50 | $ 66.92 | |
Description
General part information

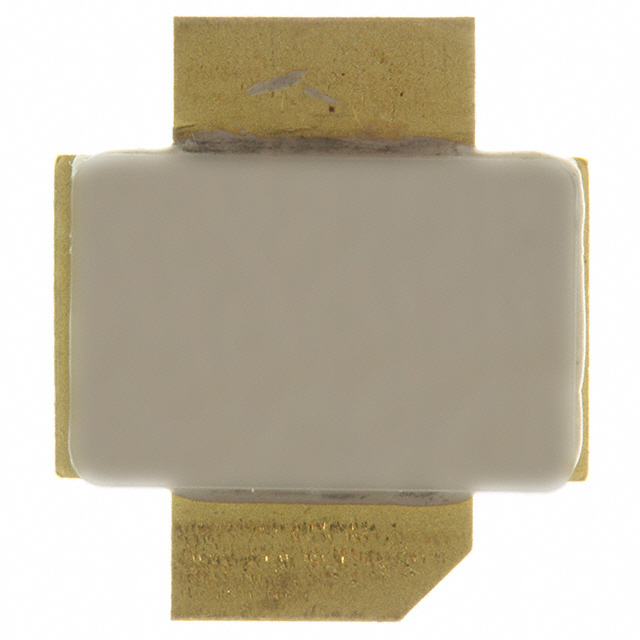

SD57045-01 Series
The SD57045-01 is a common source N-Channel enhancement-mode lateral Field-Effect RF power transistor designed for broadband commercial and industrial applications at frequencies up to 1.0 GHz. The SD57045-01 is designed for high gain and broadband performance operating in common source mode at 28 V. It is ideal for base station applications requiring high linearity.
