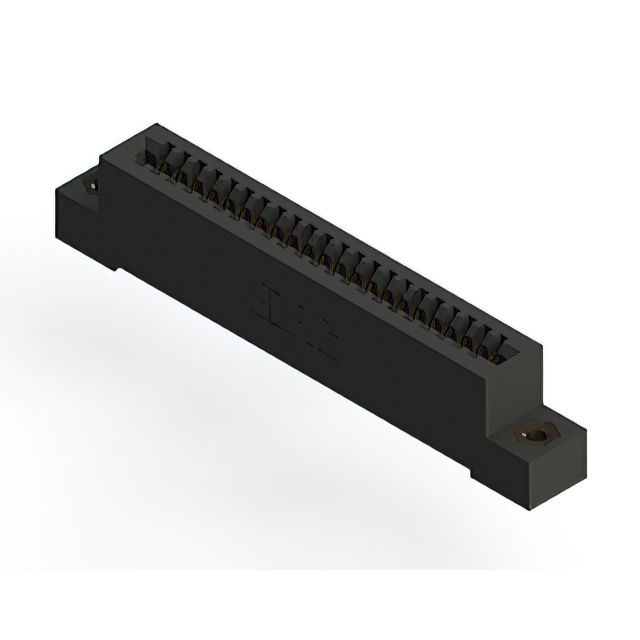

892-022-524-108

Active

EDAC Inc.

CONN EDGE SINGLE FML 22POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

892-022-524-108

Active

EDAC Inc.

CONN EDGE SINGLE FML 22POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	892-022-524-108

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	22 positions
Number of Positions/Bay/Row [custom]	22
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

892-022 Series

...

Part	Number of Positions	Contact Finish	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Color	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Read Out	Card Type	Contact Type	Material - Insulation	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Material	Number of Positions/Bay/Row [custom]	Termination	Termination Rows	Features
EDAC Inc. 892-022-559-112	22 positions	Gold	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	Through Hole Right Angle	125 °C	-40 °C	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Single	Non Specified - Single Edge	Cantilever	Polyphenylene Sulfide (PPS)	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	22	Solder	1
EDAC Inc. 892-022-559-102	22 positions	Gold	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	Through Hole Right Angle	125 °C	-40 °C	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Single	Non Specified - Single Edge	Cantilever	Polyphenylene Sulfide (PPS)	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	22	Solder	1
EDAC Inc. 892-022-520-112	22 positions	Gold	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	Through Hole	125 °C	-40 °C	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Single	Non Specified - Single Edge	Cantilever	Polyphenylene Sulfide (PPS)	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	22	Solder	1
EDAC Inc. 892-022-524-108	22 positions	Gold	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	Through Hole	125 °C	-40 °C		4-40 Flush Mount Threaded Insert Top Opening		Single	Non Specified - Single Edge	Cantilever	Polyphenylene Sulfide (PPS)	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	22	Solder	1
EDAC Inc. 892-022-524-207	22 positions	Gold	2	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	Through Hole	125 °C	-40 °C		Flush Mount M3 Threaded Insert Top Opening		Dual	Non Specified - Dual Edge	Cantilever	Polyphenylene Sulfide (PPS)	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	11	Solder	2
EDAC Inc. 892-022-559-107	22 positions	Gold	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	Through Hole Right Angle	125 °C	-40 °C		Flush Mount M3 Threaded Insert Top Opening		Single	Non Specified - Single Edge	Cantilever	Polyphenylene Sulfide (PPS)	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	22	Solder	1
EDAC Inc. 892-022-540-104	22 positions	Gold	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	Through Hole	125 °C	-40 °C	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Single	Non Specified - Single Edge	Cantilever	Polyphenylene Sulfide (PPS)	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	22	Wire Wrap	1
EDAC Inc. 892-022-555-202	22 positions	Gold	2	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	Board Edge Straddle Mount	125 °C	-40 °C	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Dual	Non Specified - Dual Edge	Cantilever	Polyphenylene Sulfide (PPS)	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	11	Solder	2	Card Extender
EDAC Inc. 892-022-524-101	22 positions	Gold	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	Through Hole	125 °C	-40 °C				Single	Non Specified - Single Edge	Cantilever	Polyphenylene Sulfide (PPS)	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	22	Solder	1
EDAC Inc. 892-022-521-201	22 positions	Gold	2	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	Through Hole	125 °C	-40 °C				Dual	Non Specified - Dual Edge	Cantilever	Polyphenylene Sulfide (PPS)	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	11	Solder	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 97.16
Newark	Each	1	$ 116.59
		100	$ 95.86
		250	$ 86.86
		500	$ 79.23
		1000	$ 65.38

Description

General part information

892-022 Series

22 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
