AWG28-15/G/300

Unknown

Assmann WSW Components

CBL RIBN 15COND 0.05 GRAY 25'

Search across all available documentation for this part.

Unknown

Assmann WSW Components

CBL RIBN 15COND 0.05 GRAY 25'

Technical Specifications

Parameters and characteristics for this part

Specification	AWG28-15/G/300

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
First Conductor Mark	Red
Insulation Resistance	100 MOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	15.24 m, 7.62 m
Length	50 ft, 25 ft
Length	Enter Number of Feet in Order Quantity
Number of Conductors	15
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-10 °C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2651
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width	0.75 "
Ribbon Width	19.05 mm
Shielding	Unshielded
Spool Size	300 ft
Spool Size	91.44 m
Voltage	300 V
Wire Gauge	28 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Cable Type	Shielding	Jacket Color	Ratings	Ribbon Width	Ribbon Width	Insulation Resistance	Conductor Material	Operating Temperature	Ribbon Thickness	Ribbon Thickness	Wire Gauge	Pitch [x]	Pitch [x]	Jacket (Insulation) Material	Length	Length	Length [x]	Length [x]	Spool Size	Spool Size	First Conductor Mark	Voltage	Length	Operating Temperature [Max]	Operating Temperature [Min]
Assmann WSW Components AWG28-15/F/300	7	36 AWG	15	Flat Cable	Unshielded	Multiple	UL Style 2651	0.75 "	19.05 mm	100 MOhms	Copper Tinned	105 C	0.89 mm	0.035 in	28 AWG	0.05 in	1.27 mm	Poly-Vinyl Chloride (PVC)	7.62 m 91.44 m	25 ft 300 ft	10 ft 100 ft	3.05 m 30.48 m	300 ft	91.44 m	Red	300 V	Enter Number of Feet in Order Quantity
Assmann WSW Components AWG28-15/G/300	7	36 AWG	15	Flat Cable	Unshielded	Gray	UL Style 2651	0.75 "	19.05 mm	100 MOhms	Copper Tinned		0.89 mm	0.035 in	28 AWG	0.05 in	1.27 mm	Poly-Vinyl Chloride (PVC)	7.62 m 15.24 m	25 ft 50 ft			300 ft	91.44 m	Red	300 V	Enter Number of Feet in Order Quantity	105 ░C	-10 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

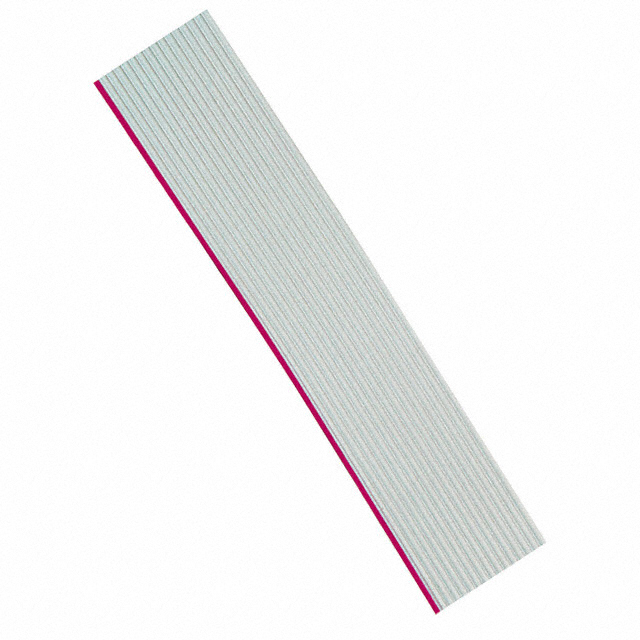

Flat Ribbon Cable Gray 15 Conductors 0.050" (1.27mm) Flat Cable 25.0' (7.62m)
