HN2C01FEYTE85LF

Obsolete

Toshiba Semiconductor and Storage

TRANS 2NPN 50V 0.15A ES6

Search across all available documentation for this part.

Obsolete

Toshiba Semiconductor and Storage

TRANS 2NPN 50V 0.15A ES6

Technical Specifications

Parameters and characteristics for this part

Specification	HN2C01FEYTE85LF

Current - Collector (Ic) (Max) [Max]	150 mA
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	120
Frequency - Transition	60 MHz
Mounting Type	Surface Mount
Operating Temperature	150 °C

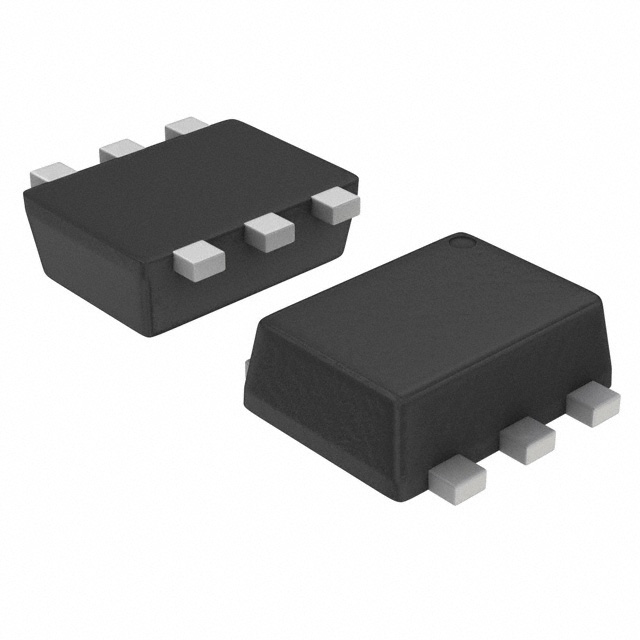

Package / Case	SOT-666, SOT-563
Power - Max [Max]	100 mW
Supplier Device Package	ES6
Transistor Type	2 NPN (Dual)
Vce Saturation (Max) @ Ib, Ic	250 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

Part	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Supplier Device Package	Operating Temperature	Package / Case	Power - Max [Max]	Vce Saturation (Max) @ Ib, Ic	Transistor Type	Mounting Type	Frequency - Transition
Toshiba Semiconductor and Storage HN2C01FEYTE85LF	120	100 nA	50 V	150 mA	ES6	150 °C	SOT-563 SOT-666	100 mW	250 mV	2 NPN (Dual)	Surface Mount	60 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor Array 2 NPN (Dual) 50V 150mA 60MHz 100mW Surface Mount ES6

Technical documentation and resources

No documents available
