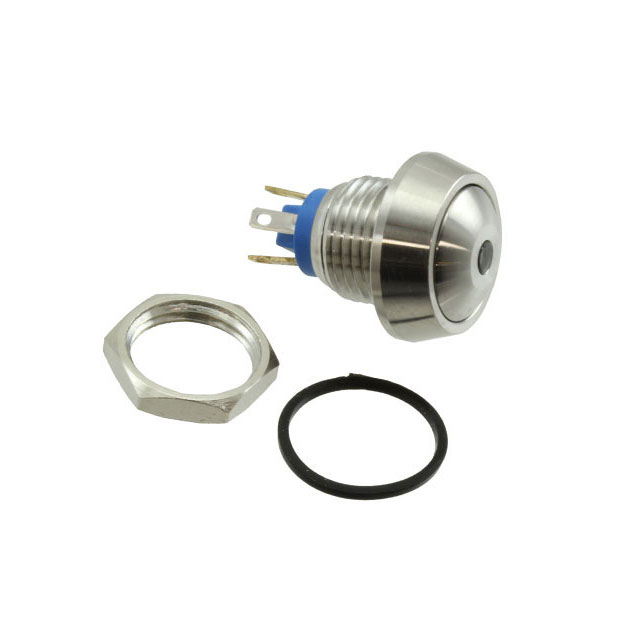

MMPI0120/SSSRD012P

Active

BULGIN LIMITED

SWITCH PUSHBUTTON SPST-NO 2A 36V

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH PUSHBUTTON SPST-NO 2A 36V

Technical Specifications

Parameters and characteristics for this part

Specification	MMPI0120/SSSRD012P

Actuator Marking	No Marking
Actuator Type	Domed, Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	200000 Cycles
Features	Stainless Steel
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - DC	36 VDC

Part	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Type	Circuit	Electrical Life	Switch Function	Ingress Protection	Illumination Type, Color	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Mounting Type	Color - Actuator/Cap	Mechanical Life	Illumination Voltage (Nominal)	Actuator Type	Termination Style	Features
BULGIN LIMITED MMPI0120/ABKRD012P	12 mm	36 VDC	Illuminated Standard	SPST-NO	200000 Cycles	Off-Mom	IP65 - Dust Tight Water Resistant	LED Red	2 A	55 °C	-25 °C	No Marking	Panel Mount Front	Black	1000000 Cycles	12 VDC	Button Domed Round	Solder Lug
BULGIN LIMITED MMPI0120/NNBRD012P	12 mm	36 VDC	Illuminated Standard	SPST-NO	200000 Cycles	Off-Mom	IP65 - Dust Tight Water Resistant	LED Red	2 A	55 °C	-25 °C	No Marking	Panel Mount Front	Silver	1000000 Cycles	12 VDC	Button Domed Round	Solder Lug
BULGIN LIMITED MMPI0120/SSSRD012P	12 mm	36 VDC	Illuminated Standard	SPST-NO	200000 Cycles	Off-Mom	IP65 - Dust Tight Water Resistant	LED Red	2 A	55 °C	-25 °C	No Marking	Panel Mount Front	Silver	1000000 Cycles	12 VDC	Button Domed Round	Solder Lug	Stainless Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
