CDFR13W3113L461

Active

MH Connectors

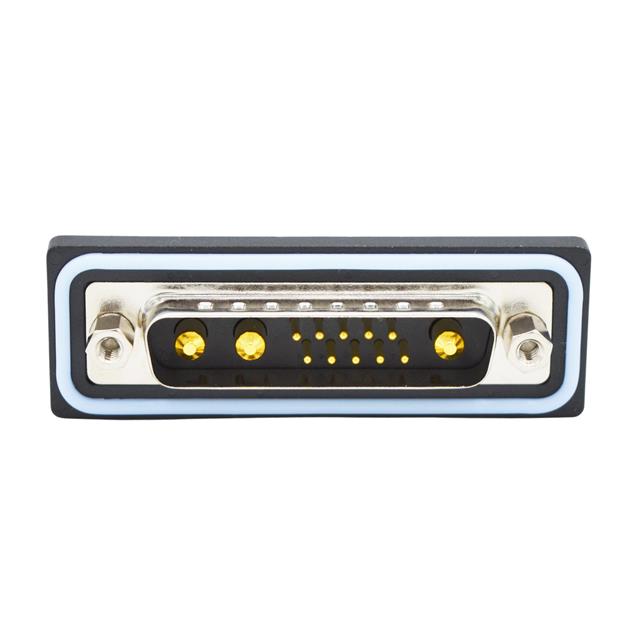

CONN D-SUB PLUG 13POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CDFR13W3113L461

Active

MH Connectors

CONN D-SUB PLUG 13POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CDFR13W3113L461

Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal and Power
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Mounting Brackets, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions [custom]	10
Number of Positions [custom]	3
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	13W3, 13C3, B, DB
Shell Size, Connector Layout	3
Termination	Solder

CDFR13W Series

Part	Material Flammability Rating	Shell Material, Finish	Shell Size, Connector Layout	Shell Size, Connector Layout	Connector Type	Flange Feature	Contact Finish	Number of Positions [custom]	Number of Positions [custom]	Termination	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Number of Rows	Ingress Protection	Contact Material	Mounting Type	Features	Contact Finish Thickness
MH Connectors CDFR13W3213L412	UL94 V-0	Nickel Plated Steel	13C3 13W3 B DB	3	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	Gold	10	3	Solder	Combo D-Sub	0.76 Ám	30 Áin	Signal and Power	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	2	IP67 - Dust Tight Waterproof	Brass	Panel Mount Right Angle Through Hole
MH Connectors CDFR13W3213L461	UL94 V-0	Nickel Plated Steel	13C3 13W3 B DB	3	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	Gold	10	3	Solder	Combo D-Sub			Signal and Power	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	2	IP67 - Dust Tight Waterproof	Brass	Panel Mount Right Angle Through Hole	Board Lock Mounting Brackets	Flash
MH Connectors CDFR13W3213L211	UL94 V-0	Nickel Plated Steel	13C3 13W3 B DB	3	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	Gold	10	3	Solder	Combo D-Sub			Signal and Power	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	2	IP67 - Dust Tight Waterproof	Brass	Panel Mount Right Angle Through Hole		Flash
MH Connectors CDFR13W3213L411	UL94 V-0	Nickel Plated Steel	13C3 13W3 B DB	3	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	Gold	10	3	Solder	Combo D-Sub			Signal and Power	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	2	IP67 - Dust Tight Waterproof	Brass	Panel Mount Right Angle Through Hole		Flash
MH Connectors CDFR13W3213L262	UL94 V-0	Nickel Plated Steel	13C3 13W3 B DB	3	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	Gold	10	3	Solder	Combo D-Sub	0.76 Ám	30 Áin	Signal and Power	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	2	IP67 - Dust Tight Waterproof	Brass	Panel Mount Right Angle Through Hole	Board Lock Mounting Brackets
MH Connectors CDFR13W3113L461	UL94 V-0	Nickel Plated Steel	13C3 13W3 B DB	3	Male Pins Plug	Female Screwlock (4-40) Mating Side	Gold	10	3	Solder	Combo D-Sub			Signal and Power	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	2	IP67 - Dust Tight Waterproof	Brass	Panel Mount Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets	Flash
MH Connectors CDFR13W3213L212	UL94 V-0	Nickel Plated Steel	13C3 13W3 B DB	3	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	Gold	10	3	Solder	Combo D-Sub	0.76 Ám	30 Áin	Signal and Power	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	2	IP67 - Dust Tight Waterproof	Brass	Panel Mount Right Angle Through Hole
MH Connectors CDFR13W3113L212	UL94 V-0	Nickel Plated Steel	13C3 13W3 B DB	3	Male Pins Plug	Female Screwlock (4-40) Mating Side	Gold	10	3	Solder	Combo D-Sub	0.76 Ám	30 Áin	Signal and Power	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	2	IP67 - Dust Tight Waterproof	Brass	Panel Mount Right Angle Through Hole	Grounding Indents
MH Connectors CDFR13W3213L261	UL94 V-0	Nickel Plated Steel	13C3 13W3 B DB	3	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	Gold	10	3	Solder	Combo D-Sub			Signal and Power	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	2	IP67 - Dust Tight Waterproof	Brass	Panel Mount Right Angle Through Hole	Board Lock Mounting Brackets	Flash
MH Connectors CDFR13W3113L411	UL94 V-0	Nickel Plated Steel	13C3 13W3 B DB	3	Male Pins Plug	Female Screwlock (4-40) Mating Side	Gold	10	3	Solder	Combo D-Sub			Signal and Power	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	2	IP67 - Dust Tight Waterproof	Brass	Panel Mount Right Angle Through Hole	Grounding Indents	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 17.99
		10	$ 13.87
		25	$ 12.76

Description

General part information

CDFR13W Series

13 (10 + 3 Power) Position D-Sub, Combo Plug, Male Pins Connector
