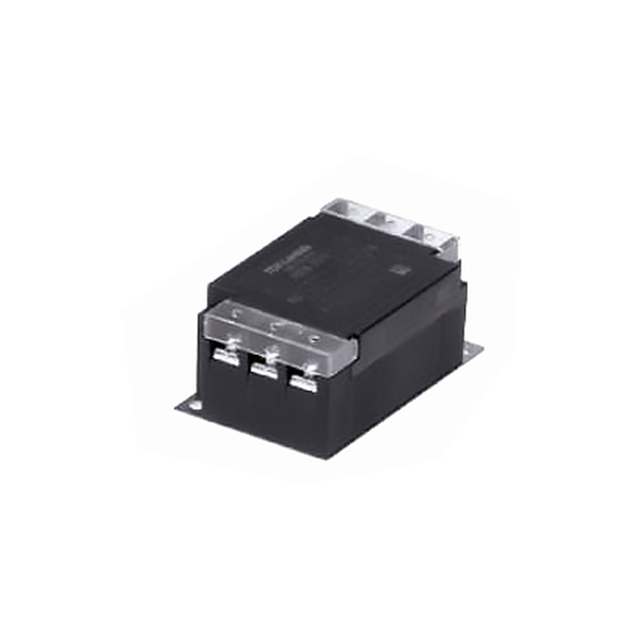

RSEN-2003

Active

TDK-LAMBDA

POWER LINE FILTER, GENERAL PURPOSE, 250 V, 3 A, SINGLE PHASE, 1 STAGE, DIN RAIL MOUNT

Search across all available documentation for this part.

Active

TDK-LAMBDA

POWER LINE FILTER, GENERAL PURPOSE, 250 V, 3 A, SINGLE PHASE, 1 STAGE, DIN RAIL MOUNT

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Approval Agency	Termination Style	Applications	Configuration	Voltage - Rated DC	Filter Type	Operating Temperature [Min]	Operating Temperature [Max]	Current	Voltage - Rated AC
TDK-LAMBDA RSEN-2020	Chassis Mount	CSA EN UL	Terminal Block	General Purpose	Single Stage	250 V	Single Phase	-25 °C	85 °C	20 A	250 V
TDK-LAMBDA RSEN-2300	Chassis Mount		Terminal Block	General Purpose	Single Stage	250 V	Single Phase	-25 °C	85 °C	300 A	250 V
TDK-LAMBDA RSEN-2060	Chassis Mount	CSA EN UL	Terminal Block	General Purpose	Single Stage	250 V	Single Phase	-25 °C	85 °C	60 A	250 V
TDK-LAMBDA RSEN-2003L	Chassis Mount	CSA EN UL	Terminal Block	General Purpose	Single Stage	250 V	Single Phase	-25 °C	85 °C	3 A	250 V
TDK-LAMBDA RSEN-2020L	Chassis Mount	CSA EN UL	Terminal Block	General Purpose	Single Stage	250 V	Single Phase	-25 °C	85 °C	20 A	250 V
TDK-LAMBDA RSEN-2030D	DIN Rail	CSA EN UL	Terminal Block	General Purpose	Single Stage	250 V	Single Phase	-25 °C	85 °C	30 A	250 V
TDK-LAMBDA RSEN-2080	Chassis Mount		Terminal Block	General Purpose	Single Stage	250 V	Single Phase	-25 °C	85 °C	80 A	250 V
TDK-LAMBDA RSEN-2250	Chassis Mount		Terminal Block	General Purpose	Single Stage	250 V	Single Phase	-25 °C	85 °C	250 A	250 V
TDK-LAMBDA RSEN-2003	Chassis Mount	CSA EN UL	Terminal Block	General Purpose	Single Stage	250 V	Single Phase	-25 °C	85 °C	3 A	250 V
TDK-LAMBDA RSEN-2006	Chassis Mount	CSA EN UL	Terminal Block	General Purpose	Single Stage	250 V	Single Phase	-25 °C	85 °C	6 A	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Phase EMC/EMI Line Filter 3 A 250V 250V Single Stage Terminal Block
