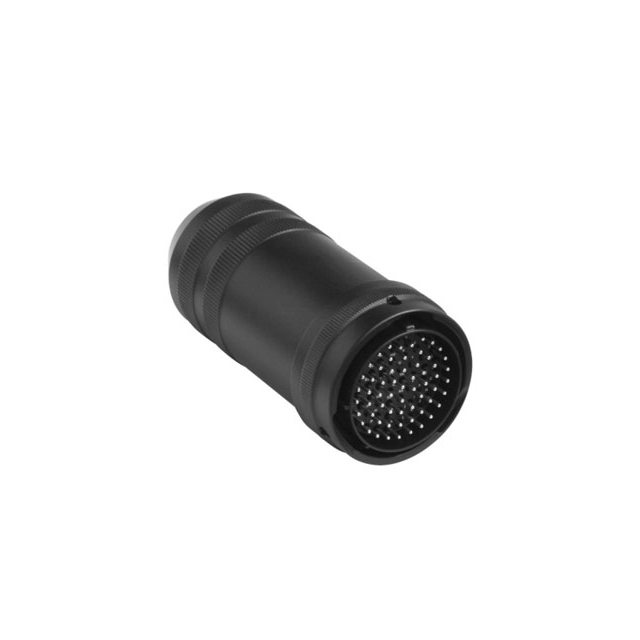

MP-6516-39P

Active

AMPHENOL AUDIO

CONN PLUG MALE 39P SOLDER CUP

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

CONN PLUG MALE 39P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	MP-6516-39P

Applications	Audio, Lighting
Cable Opening [diameter]	0.354 in, 0.551 in
Cable Opening [diameter]	9 mm, 14 mm
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	13 A, 7.5 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell, PG Adapter
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	39
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Black
Shell Material	Aluminum Die Cast
Shell Size - Insert [Max]	39
Shell Size - Insert [Min]	20
Shielding	Unshielded

CONN PLUG MALE 39P SOLDER CUP

Part	Color	Insert Material	Current Rating (Amps)	Shell Finish	Ingress Protection	Fastening Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Features	Shielding	Primary Material	Number of Positions	Applications	Contact Finish - Mating	Orientation	Shell Material	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Connector Type	Cable Opening [diameter]	Cable Opening [diameter]
AMPHENOL AUDIO MP-6516-39P	Black	Neoprene	7.5 A, 13 A	Black	IP67 - Dust Tight, Waterproof	Bayonet Lock	Brass	-55 °C	125 °C	Free Hanging (In-Line)	Backshell, Coupling Nut, PG Adapter	Unshielded	Metal	39	Audio, Lighting	Gold	Keyed	Aluminum Die Cast	39	20	Male Pins, Plug	0.354 in, 0.551 in	9 mm, 14 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 81.61

General part information

39 Position Circular Connector Plug, Male Pins Solder Cup
