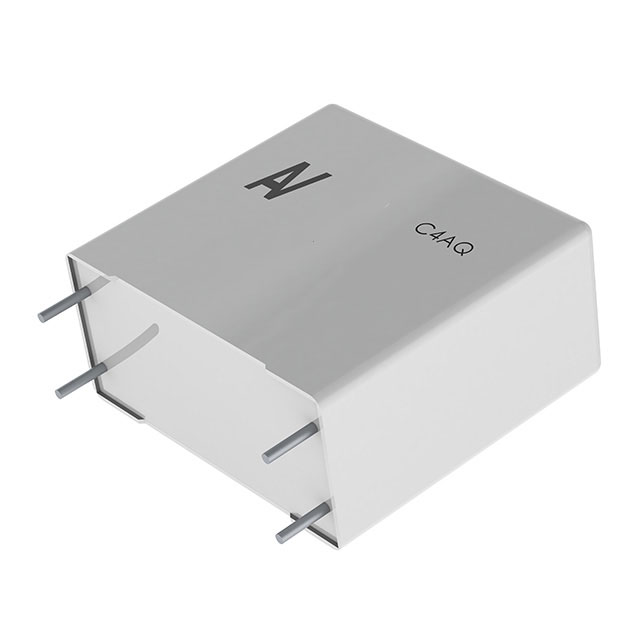

C4AQCBW5550A3MJ

Active

KEMET

CAP FILM 55UF 5% 650VDC RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP FILM 55UF 5% 650VDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	C4AQCBW5550A3MJ

Applications	Automotive, DC Link, DC Filtering
Capacitance	55 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	4.1 mOhms
Height - Seated (Max) [Max] [z]	45.3 mm
Height - Seated (Max) [Max] [z]	1.783 in
Lead Spacing	52.5 mm
Lead Spacing	2.067 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial - 4 Leads
Ratings	AEC-Q200
Size / Dimension [x]	2.264 in
Size / Dimension [x]	57.5 mm
Size / Dimension [y]	1.181 in
Size / Dimension [y]	30 mm
Termination	PC Pins
Tolerance	5 %
Voltage Rating - DC	650 V

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Ratings	Termination	Dielectric Material	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Applications	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - DC	Mounting Type	Tolerance	ESR (Equivalent Series Resistance)
KEMET C4AQCBU5150A12J	1.24 in	22 mm	0.866 in	31.5 mm	AEC-Q200	PC Pins	Metallized Polypropylene (PP)	Radial	-40 °C	105 ░C	15 µF	Automotive DC Filtering DC Link	27.5 mm	1.083 in	1.465 in	37.2 mm	650 V	Through Hole	5 %	5.3 mOhms
KEMET C4AQCBW5750A3NJ	2.264 in	35 mm	1.378 "	57.5 mm	AEC-Q200	PC Pins	Metallized Polypropylene (PP)	Radial - 4 Leads	-40 °C	105 ░C	75 µF	Automotive DC Filtering DC Link	52.5 mm	2.067 in			650 V	Through Hole	5 %	3.1 mOhms
KEMET C4AQCBW5500A3OJ	1.654 in	35 mm	1.378 "	42 mm	AEC-Q200	PC Pins	Metallized Polypropylene (PP)	Radial - 4 Leads	-40 °C	105 ░C	50 µF	Automotive DC Filtering DC Link	37.5 mm	1.476 in	1.976 "	50.2 mm	650 V	Through Hole	5 %	2 mOhms
KEMET C4AQCBW5550A3MJ	2.264 in	30 mm	1.181 in	57.5 mm	AEC-Q200	PC Pins	Metallized Polypropylene (PP)	Radial - 4 Leads	-40 °C	105 ░C	55 µF	Automotive DC Filtering DC Link	52.5 mm	2.067 in	1.783 in	45.3 mm	650 V	Through Hole	5 %	4.1 mOhms
KEMET C4AQCBW5400A3LJ	1.654 in	30 mm	1.181 in	42 mm	AEC-Q200	PC Pins	Metallized Polypropylene (PP)	Radial - 4 Leads	-40 °C	105 ░C	40 µF	Automotive DC Filtering DC Link	37.5 mm	1.476 in			650 V	Through Hole	5 %	2.8 mOhms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	81	$ 8.86

General part information

55 µF Film Capacitor 650V Polypropylene (PP), Metallized Radial - 4 Leads
