IXBH20N360HV

Active

IXYS

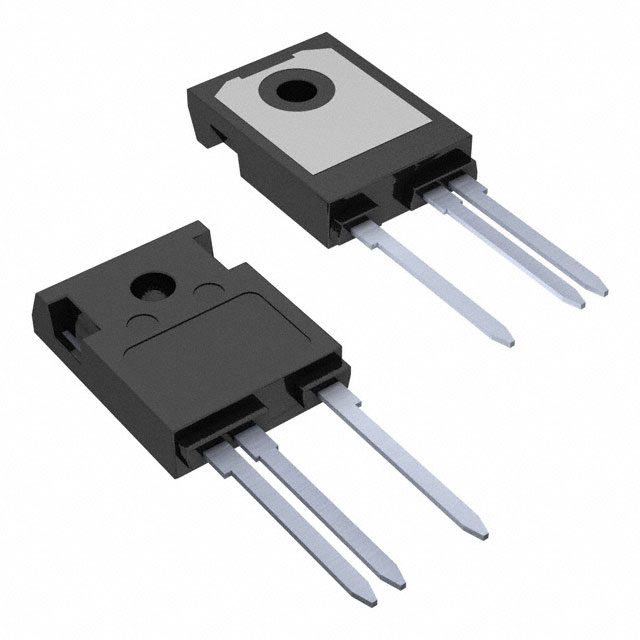

IGBT 3600V 70A TO-247HV

Search across all available documentation for this part.

Active

IXYS

IGBT 3600V 70A TO-247HV

Technical Specifications

Parameters and characteristics for this part

Specification	IXBH20N360HV

Current - Collector (Ic) (Max) [Max]	70 A
Current - Collector Pulsed (Icm)	220 A
Gate Charge	110 nC
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	TO-247-3 Variant
Power - Max [Max]	430 W
Reverse Recovery Time (trr)	1.7 µs
Supplier Device Package	TO-247HV
Switching Energy	15.5 mJ, 4.3 mJ
Td (on/off) @ 25°C [custom]	18 ns
Td (on/off) @ 25°C [custom]	238 ns
Test Condition	10 Ohm, 15 V, 20 A, 1500 V
Vce(on) (Max) @ Vge, Ic	3.4 V
Voltage - Collector Emitter Breakdown (Max)	3600 V

Part	Voltage - Collector Emitter Breakdown (Max)	Supplier Device Package	Gate Charge	Switching Energy	Operating Temperature [Min]	Operating Temperature [Max]	Td (on/off) @ 25°C [custom]	Td (on/off) @ 25°C [custom]	Reverse Recovery Time (trr)	Current - Collector (Ic) (Max) [Max]	Package / Case	Power - Max [Max]	Mounting Type	Test Condition	Current - Collector Pulsed (Icm)	Vce(on) (Max) @ Vge, Ic	Current - Collector (Ic) (Max)
IXYS IXBH20N360HV	3600 V	TO-247HV	110 nC	4.3 mJ 15.5 mJ	-55 °C	150 °C	18 ns	238 ns	1.7 µs	70 A	TO-247-3 Variant	430 W	Through Hole	10 Ohm 15 V 20 A 1500 V	220 A	3.4 V
IXYS IXBH20N300		TO-247AD	105 nC		-55 °C	150 °C			1.35 µs		TO-247-3	250 W	Through Hole		140 A	3.2 V	50 A
