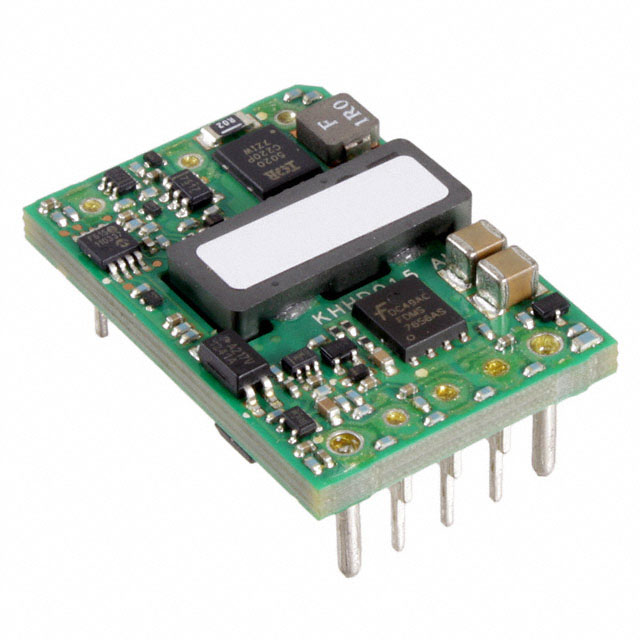

KHHD015A0F41Z

Active

OmniOn Power™

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 18-75VIN 3.3VOUT TH 12A/15A NEG LOGIC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

KHHD015A0F41Z

Active

OmniOn Power™

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 18-75VIN 3.3VOUT TH 12A/15A NEG LOGIC

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KHHD015A0F41Z

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	15 A
Efficiency	90.5 %
Features	OTP, Remote On/Off, OVP, UVLO, OCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-DIP Module
Power (Watts)	50 W
Size / Dimension [x]	1.3 "
Size / Dimension [x]	33 mm
Size / Dimension [y]	22.9 mm
Size / Dimension [y]	0.9 "
Size / Dimension [z]	0.37 in
Size / Dimension [z]	9.3 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	3.3 V

Hammerhead Series

Isolated DC/DC Converters - Through Hole 120W 18-75Vin 5Vout 24A TH Iso

Part	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Supplier Device Package	Type	Voltage - Input (Min) [Min]	Package / Case	Number of Outputs	Voltage - Output 1	Voltage - Isolation	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Applications	Mounting Type	Power (Watts)	Control Features	Approval Agency
OmniOn Power™ KHHD015A0F641Z	90.5 %	1.3 "	22.9 mm	33 mm	0.37 in	0.9 "	9.3 mm	85 °C	-40 °C	OCP OTP OVP Remote On/Off UVLO	Sixteenth Brick	Isolated Module	18 V	Sixteenth Brick	1	3.3 V	2250 VDC	15 A	75 V	ITE (Commercial)	Through Hole
OmniOn Power™ KHHD010A0F41-SRZ	90 %	1.3 "	22.9 mm	33 mm	0.37 in	0.9 "	9.3 mm	85 °C	-40 °C	OCP OTP OVP Remote On/Off UVLO		Isolated Module	18 V	1/16 Brick 8-SMD Module	1	3.3 V	2250 VDC	10 A	75 V	ITE (Commercial)	Surface Mount	33 W	Active Low Enable
OmniOn Power™ KHHD015A0F41Z	90.5 %	1.3 "	22.9 mm	33 mm	0.37 in	0.9 "	9.3 mm	85 °C	-40 °C	OCP OTP OVP Remote On/Off UVLO		Isolated Module	18 V	8-DIP Module	1	3.3 V	2250 VDC	15 A	75 V	ITE (Commercial)	Through Hole	50 W	Active Low Enable
OmniOn Power™ KHHD015A0F41-SRZ	90.5 %	1.3 "	22.9 mm	33 mm	0.37 in	0.9 "	9.3 mm	85 °C	-40 °C	OCP OTP OVP Remote On/Off UVLO		Isolated Module	18 V	8-SMD Module	1	3.3 V	2250 VDC	15 A	75 V	ITE (Commercial)	Surface Mount	50 W	Active Low Enable	CE CSA UL
OmniOn Power™ KHHD015A0F41Z	90.5 %	1.3 "	22.9 mm	33 mm	0.37 in	0.9 "	9.3 mm	85 °C	-40 °C	OCP OTP OVP Remote On/Off UVLO		Isolated Module	18 V	8-DIP Module	1	3.3 V	2250 VDC	15 A	75 V	ITE (Commercial)	Through Hole	50 W	Active Low Enable
